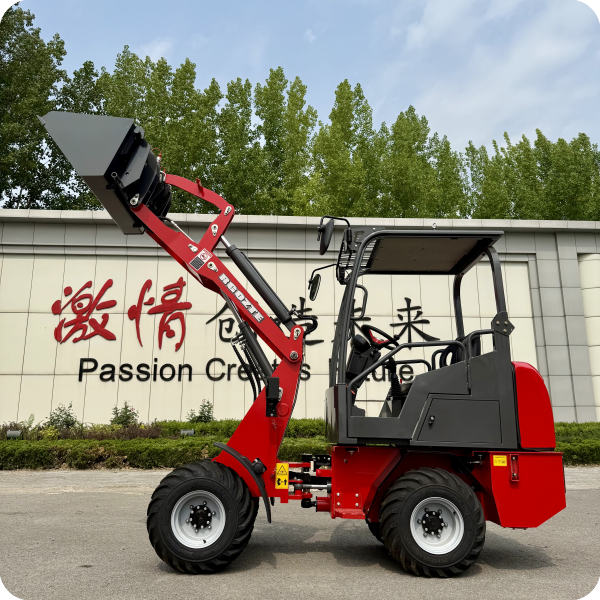

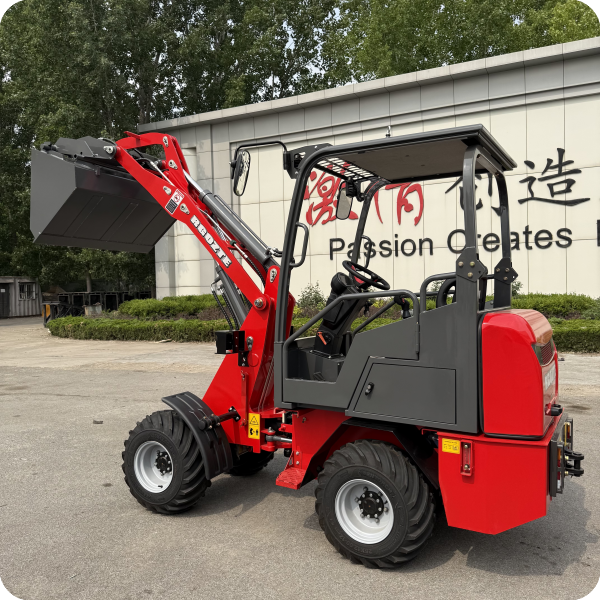

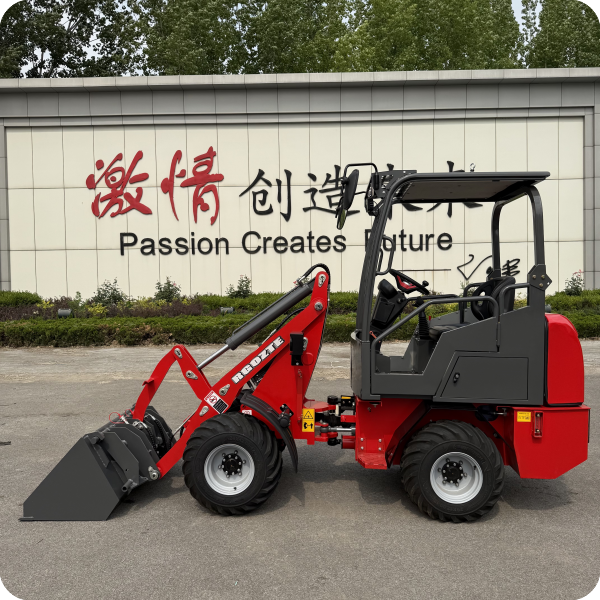

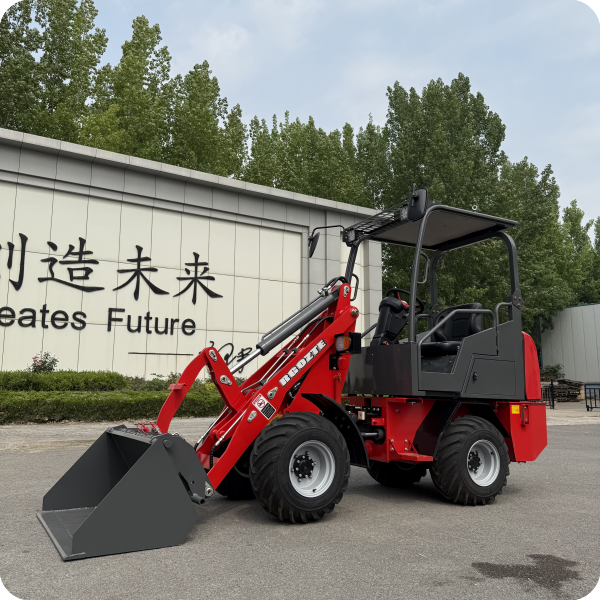

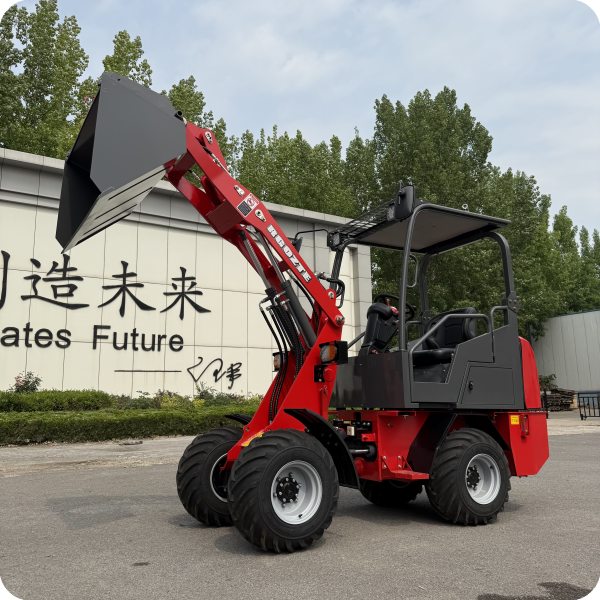

EV-08 Electric Loader

EV-08 Electric Loader
Product Introduction:

Application fields of the EV - 08 electric loader: warehouses and logistics centers, small factories and workshops, the agricultural sector, interior decoration and building construction, waste disposal and recycling, airports, etc.




Send Inquiry
Description

Product Introduction


Advantages and characteristics of electric loaders:

1. Environmental Protection and Energy Conservation
Zero Emissions: Using electricity as the power source, it produces no exhaust emissions during operation and causes no pollution to the environment. It is especially suitable for places with high requirements for air quality such as indoors, warehouses, and workshops. It also meets the requirements of current environmental protection policies.
Low Noise: The motor of the electric loader operates with relatively low noise. Compared with traditional fuel loaders, it can effectively reduce noise pollution in the workplace, improve the working environment, and reduce noise interference to operators and surrounding personnel.
Low Energy Consumption: The conversion efficiency of electric energy is relatively high. Moreover, the electric loader adopts an advanced electronic control system, which can accurately control the power output and automatically adjust the power according to the working load. Compared with fuel loaders, it can significantly reduce energy consumption costs.

2.Superior Performance
Powerful Drive: Equipped with a high-performance motor, it has a large output torque and can provide sufficient power to complete various loading, unloading, and handling tasks. Even when fully loaded, it can maintain good operating performance and has strong acceleration and climbing capabilities.
Precise Operation: Adopting an advanced electronic control system, it enables precise control of the loader's movements. Operators can accurately control the lifting and turning of the bucket as well as the driving speed of the vehicle through the joystick or buttons, improving the accuracy and efficiency of operations and reducing the spillage and waste of materials.
Low Maintenance Cost: The structure of the electric loader is relatively simple. It does not have complex mechanical transmission devices such as engines and transmissions, and has a small number of components, reducing the potential failure points. Moreover, the maintenance of the motor and battery is relatively convenient. There is no need to regularly replace components such as engine oil and filters, nor is there a need for complex engine maintenance, reducing maintenance costs and downtime.

3.Safe and Reliable
Good Braking Performance: Equipped with an advanced braking system, it usually uses electromagnetic braking or hydraulic braking methods. The braking effect is reliable and can stop the vehicle in a short time, ensuring the safety of operations.
High Stability: In the design, great attention is paid to the stability of the vehicle. By adopting a reasonable counterweight and chassis structure, the loader can maintain good balance even when operating under full load, and is less likely to have accidents such as rollovers. At the same time, the tires usually use high-quality rubber materials, which have good grip and shock absorption performance and can adapt to different working sites and road conditions.


 Technical Parameters


Performance

Rated Load (T)

0.8

ucket rated capacity (M³)

0.3M³

Dumping height (MM)(at 45°)

1780

Lifting Height (MM)

3140

Dumping Reach (MM)

980

Max. Lifting weight (KG)

600

Max. Excavation Force (KN)

1000

Max. Grade ability

30°

Max. Turning Angel

30°±1

Swing degree of the rear axle

Dimensions. &.Weight

Overall length (Bucket on Ground position) (MM)

3840

Bucket width (overall width)

1160

Overall Height (MM)

2330

Wheel base (MM)

850

Min Ground Clearance (MM)

240

Net Weight (KG)

1980kg

Turning Radius

2610mm

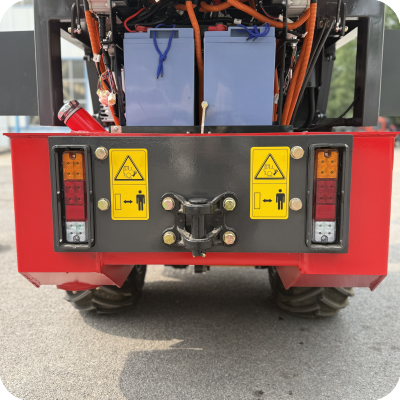

Battery

Battery Model No.

6-EVF-203A

rated capacity (3HR)

200Ah

No.of battery groups

12

Rated Voltage

72V

Working hours (H)

4-5h

Transmission System

Hydraulic System

Motor No.

CBHV-72AF-49P

Voltage

72V

Power

5000W

Displacement (Ml/R)

18

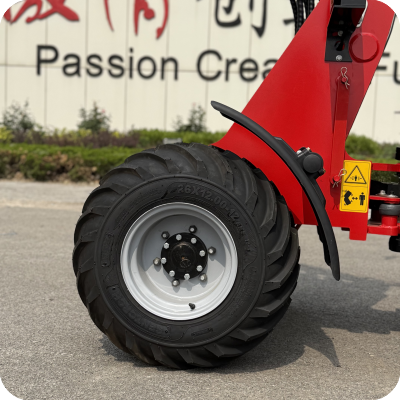

Tyres

Type

26*1200-12

working pressure (Mpa)

0.3

Number of tires

4

Steering System

Type of Steering Hydraulic System

Full Hydraulic Steering System

System Pressure (Mpa)

16

Type of Steering Pump

External Gear Pump

Steering Cylinder Bore (MM)

63

Qty (PC)

1

Braking System

Service Brake

Drum Brake

Brake Drum (MM)

250

Parking Brake

Drum Brake

Oil Capacity

Distribution Valve

Model

DL10

Type

Triple valve stem

Dumping Cylinder-Bore

Ø80

Lifting Cylinder-Bore

Ø63

Hydraulic Oil Tank (L)

30

Brake Fluid (L)

0.8

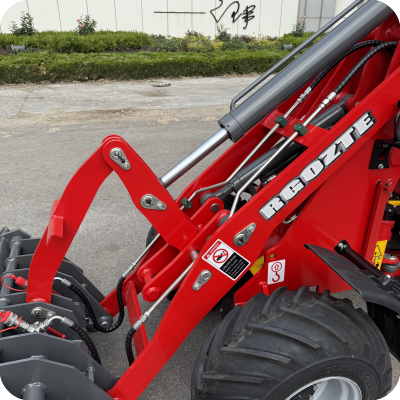

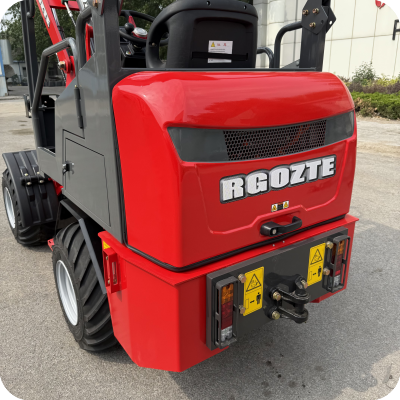

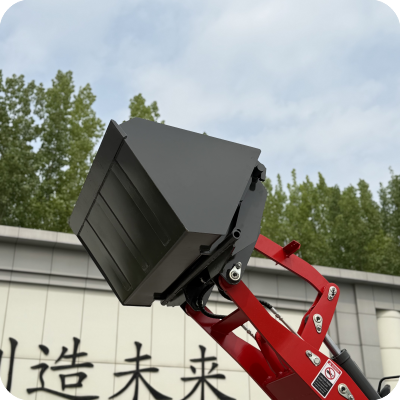

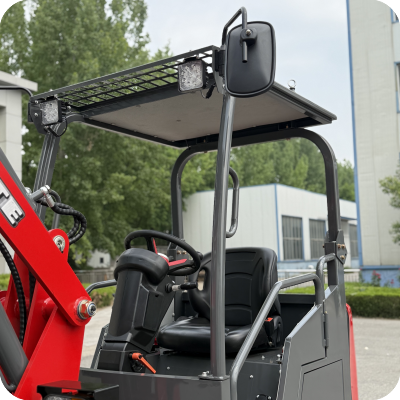

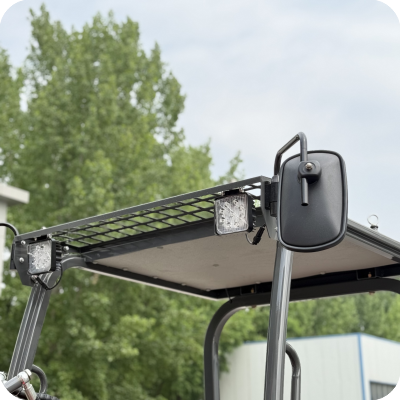

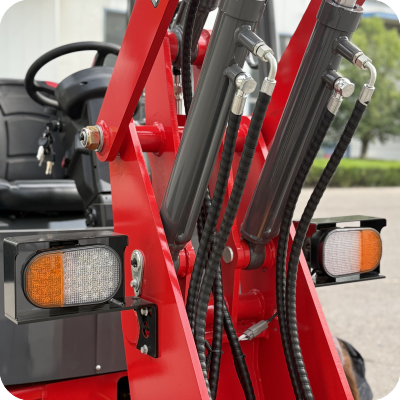

Product Details
