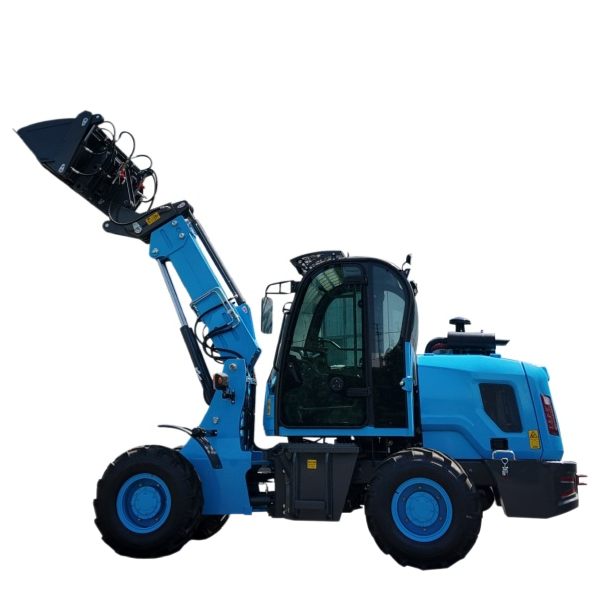

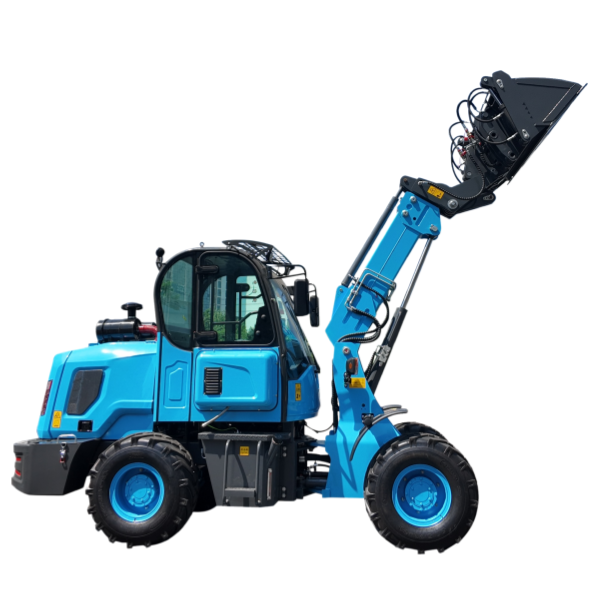

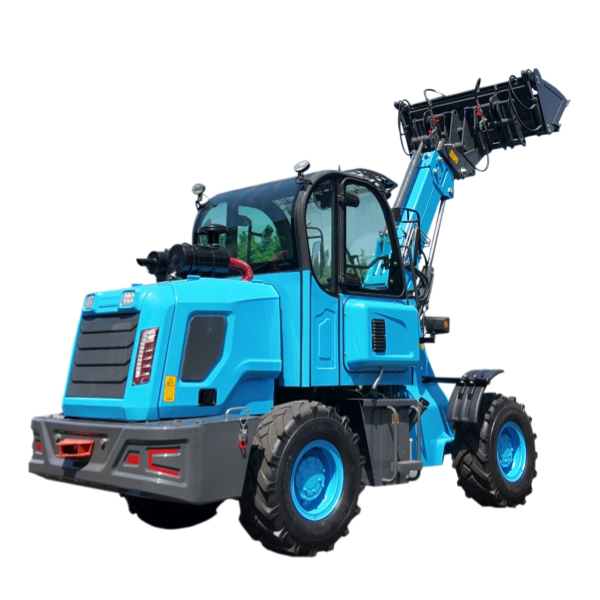

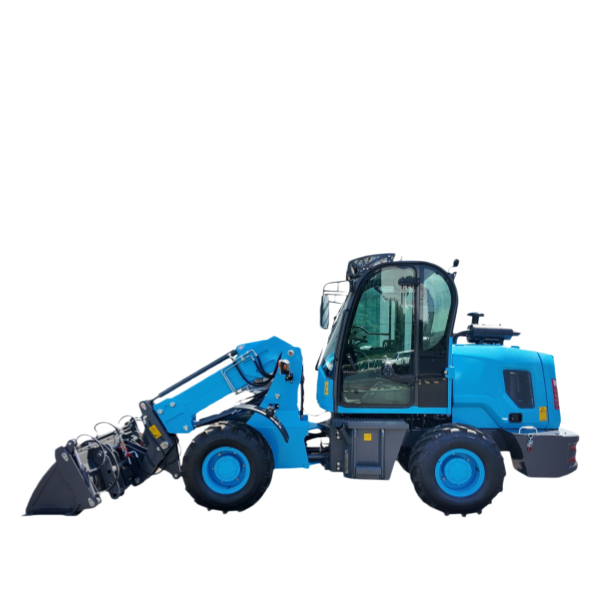

Overall System Specifications

Overall System Specifications

Descriptions

Parameters

Descriptions

Parameters

Minimum Turning Radius, mm

4,450

Body Length, mm

5,100

Discharge Angle, degree

36.5

Machine Width, mm

1,650

Theoretical Climbing Angle, degree

15

Machine Height, mm

2,500

High Gear Speed, km/h

32

Minimum Ground Clearance, mm

280

Low Gear Speed, km/h

8

Wheel Track, mm

1,230

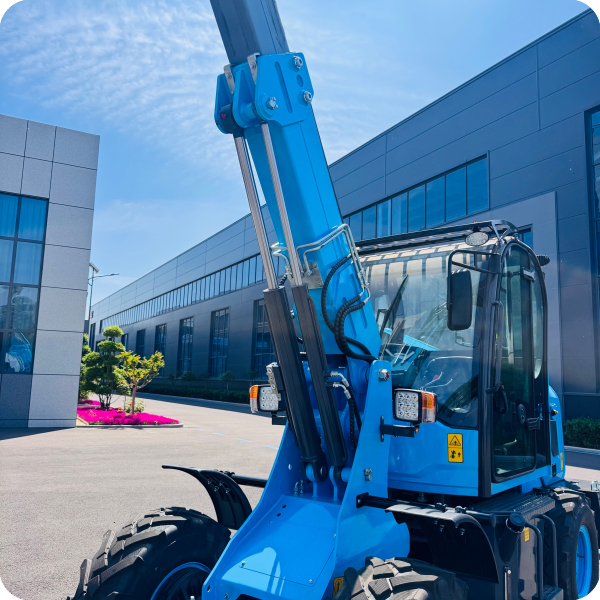

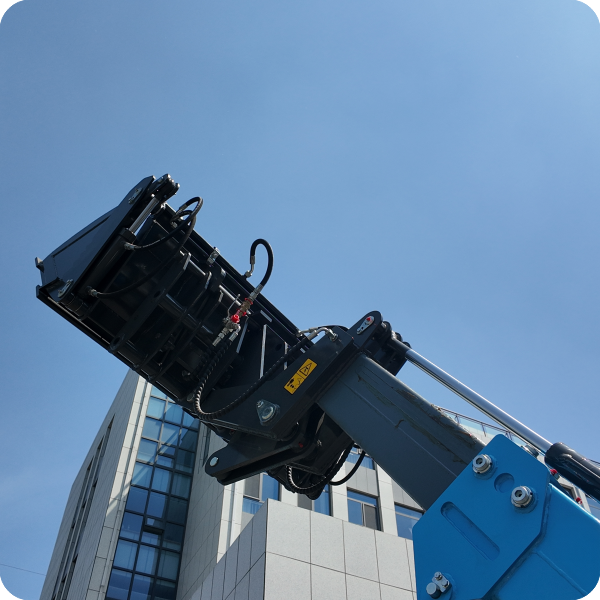

Ret/Ext Boom Dump Height, mm

2,560/3,220

Ext/Ret Boom Load Capacity, kg

800/400

No-load Lifting Time, second

≤4

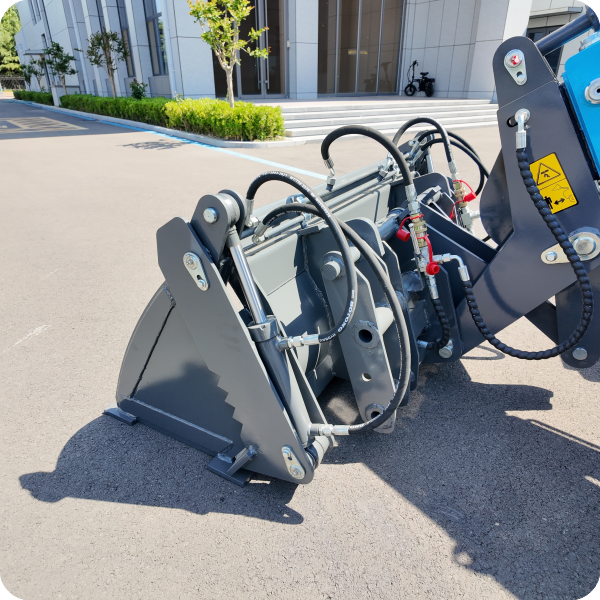

Bucket Dim. L*W*H, mm

1,600*390*413

No-load Fall Time, second

≤2.1

Bucket Capacity, m³

0.5

Unloading Time w/t load, second

≤1.0

Sum of the Three Terms

≤7.1

Axle Base, mm

2,198

Ret/Ext Boom Discharge Reach, mm

933/1,320

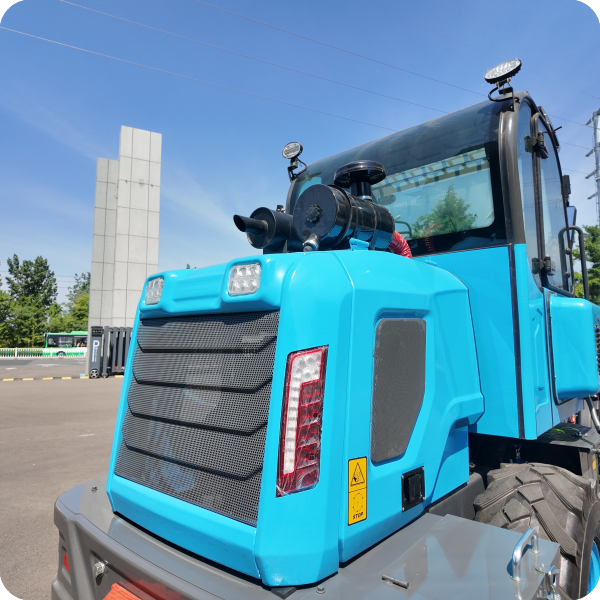

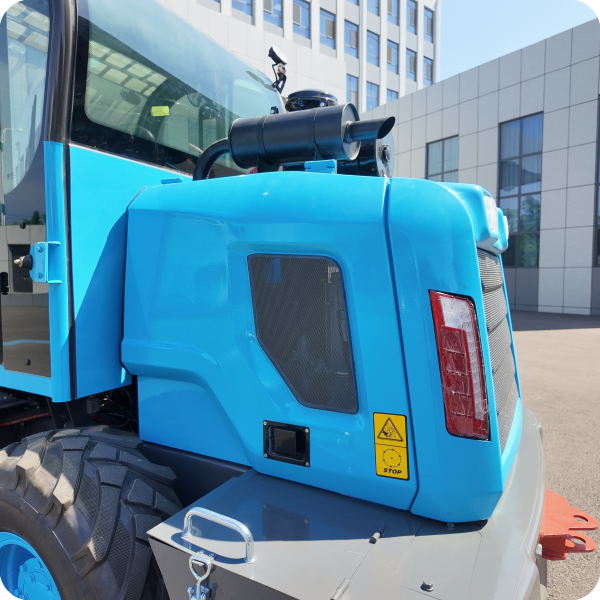

Engine Parameters

Transmission System Parameters

Descriptions

Parameters

Descriptions

Parameters

Engine Vendor

Huadong, China Statge II

Transmission Type

265 High-Low Speed

Rated Power, kw

42

Gear Shift

Forward 4, Reverse 4

Rated Speed, rpm

2,400

Braking System Type

Air Braking

Number of Cylinders

4

Axle

Wheel Side Axle

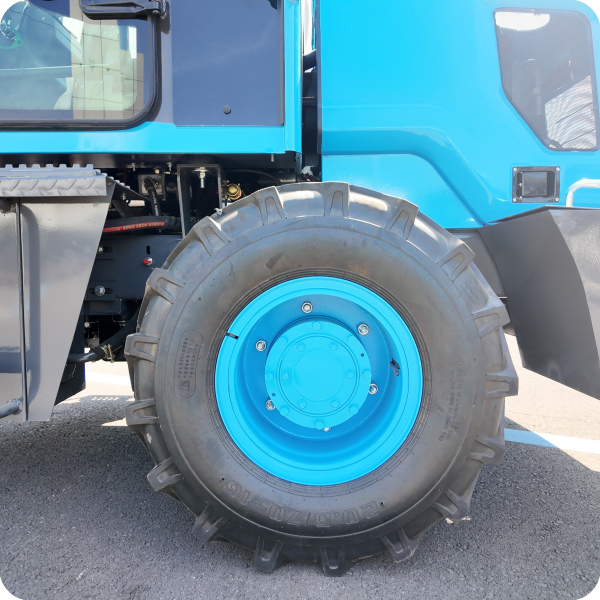

Tire Model

23.5-70/16

Front Tire Pressure, MPa

0.33

Rear Tire Pressure, MPa

0.3

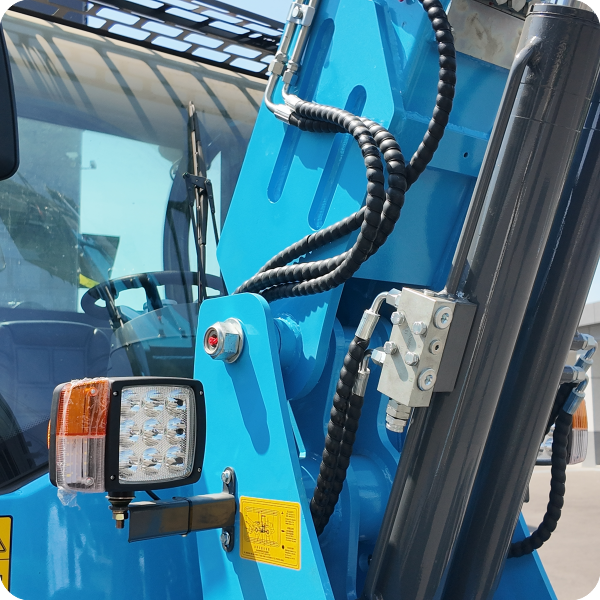

Steering System

Fuel Capacity

Descriptions

Parameters

Descriptions

Parameters

Steering Method

Fully Hydraulic Steering

Theoretical Fuel Volume, litre

40

Steering Angle, degree

32

Theoretical Hydraulic Oil Vol., litre

35

System Operating Pressure, MPa

16

Engine Oil, litre

6.5

Transmission Gear Oil, litre

24

Transmission Gear Oil, litre

24
