Parameter Configuration
Item | Value |
Applicable Industries | Farms, Home Use, Construction works |
Condition | New |

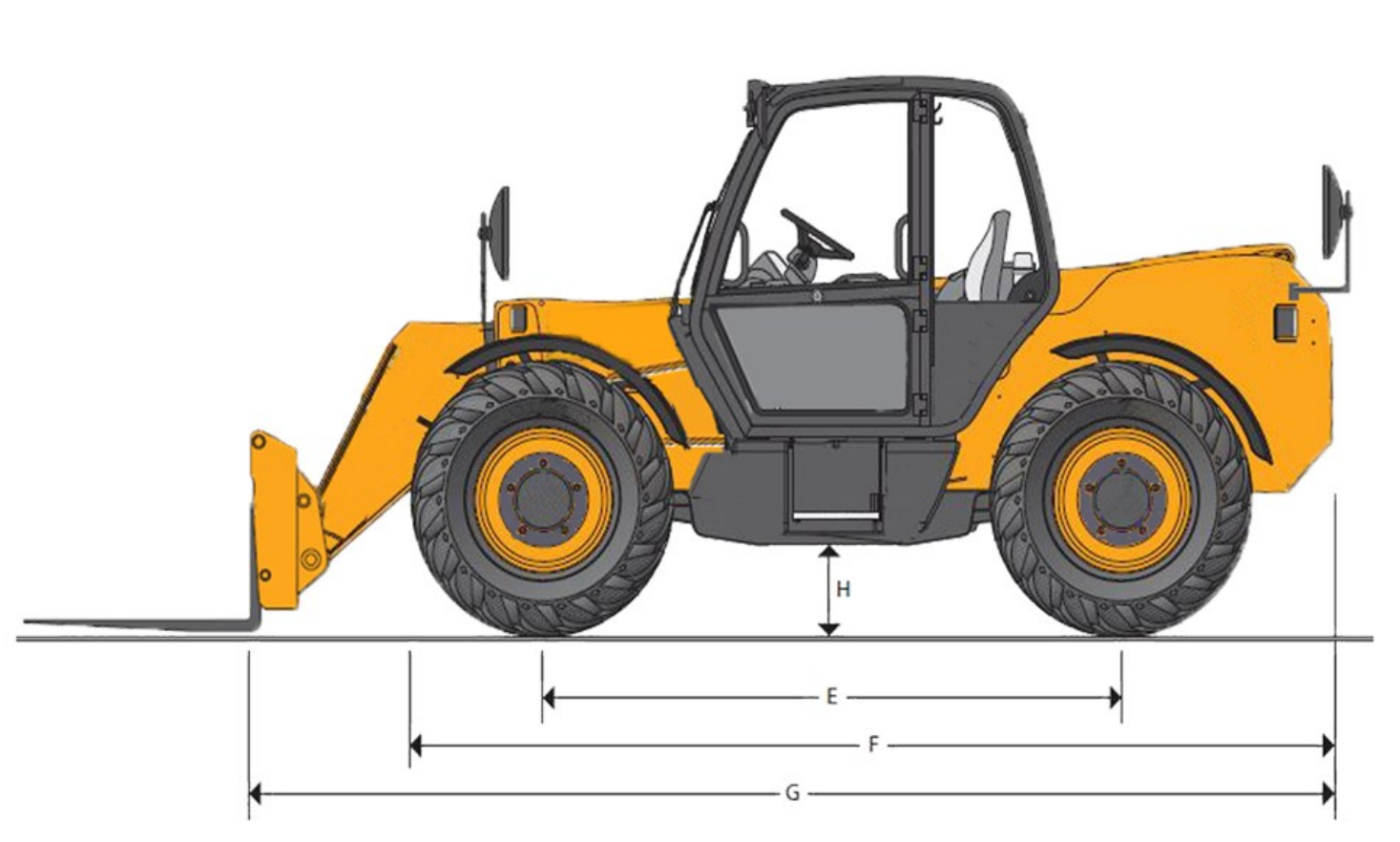

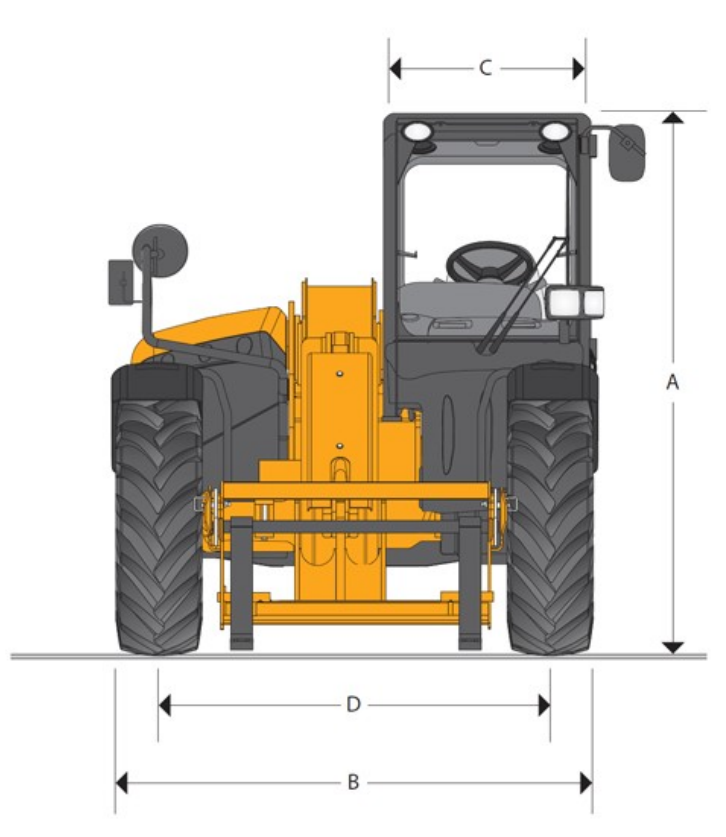

Dimension(Long * Breadth * High) | 6084x2300x2250mm |
Warranty | 1 Year |
Engine Brand | YUNNEI |
Power | 75 KW |
Bucket capacity | 1.2-2.5 CUBLIC |
Rated loading | 3500KG |
Overall weight | 7500KG |
Maximum lift height | 7000mm |
Maximum dump height | 5450mm |
Minimum turning radius | 5600mm |
Maximum tractive force | 48kN |
Maximum grade ability | 25° |
Maximum steering angle | 30° |
Oscillation angle | 8° |
Type | Water cooled, four stroke |
Displacement | 4.33L |
Torque converter | HK280 |
Gearbox mode | Speed changes are electronically controlled |
Gear shift | 2forward shift 2reverse shift |
Maximum speed | 30km/h |
Wheel base | 2940mm |
Wheel tread | 1860mm |
Ground clearance | 260mm |
System working pressure | 18MPa-25MPa |
Boom lifting time | 5.6s |
Total time | 9.9s |
Service brake | Air assist disc brake on 4 wheels |
Parking brake | Manual disc brake |

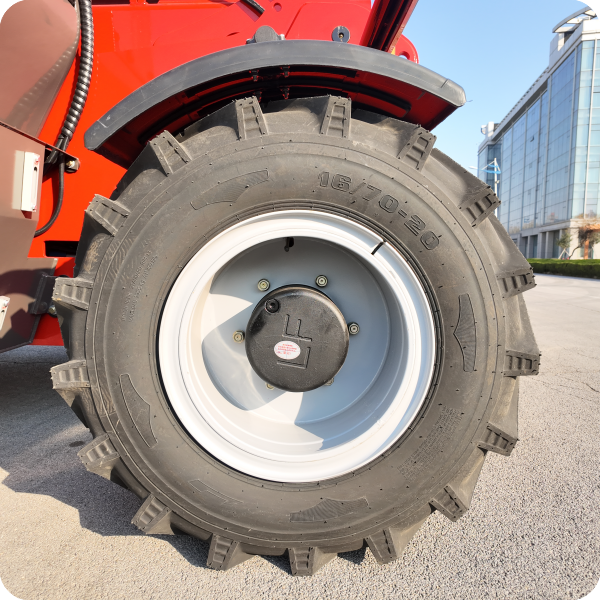

Type specification | 16/70-20 |

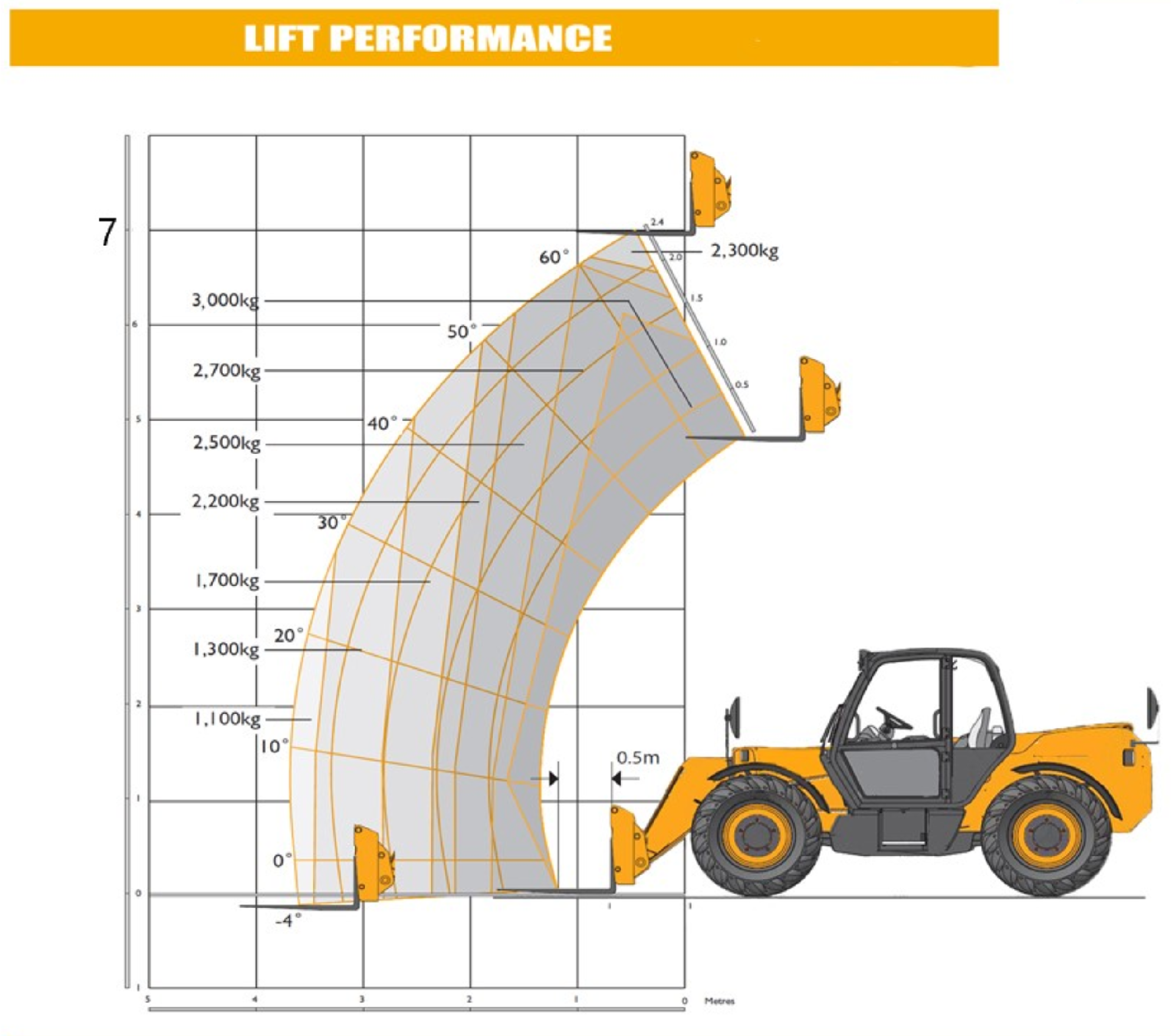

Lift Performance
The Transmission
Powershift transmission incorporating Torque converter and two speed powershift gear box in one mounted unit.
A combined steering column mounted switch incorporating directional control and 2 forward and 2 reverse powershift gears.

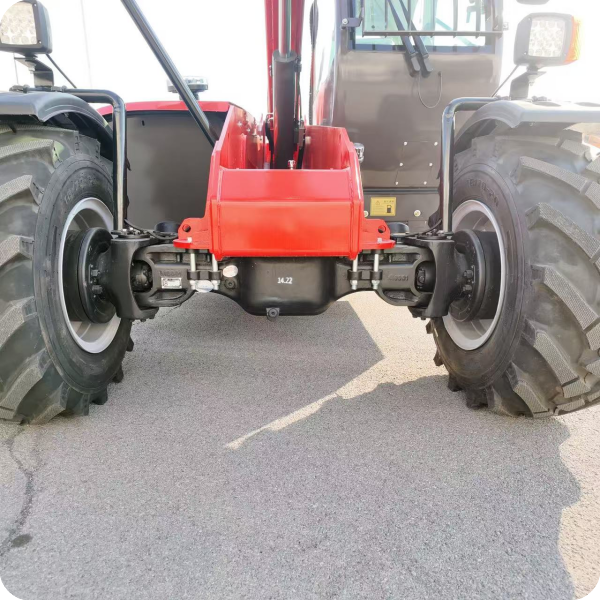

Front and rear drive axles: Epicyclic hub reduction drive/steer axles with torque proportioning differentials permanent 4 wheel drive.
The Brake
Service brake: Air pressure activated,Drum brakes.
Parking brake: Hand operated disc brake on output of gear box.

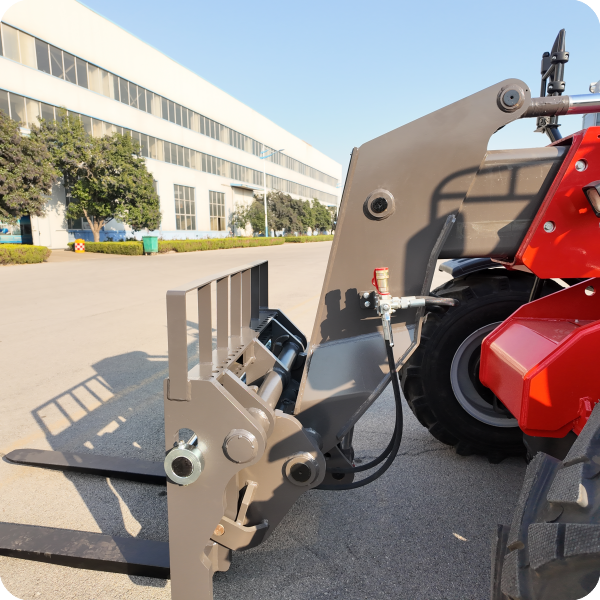

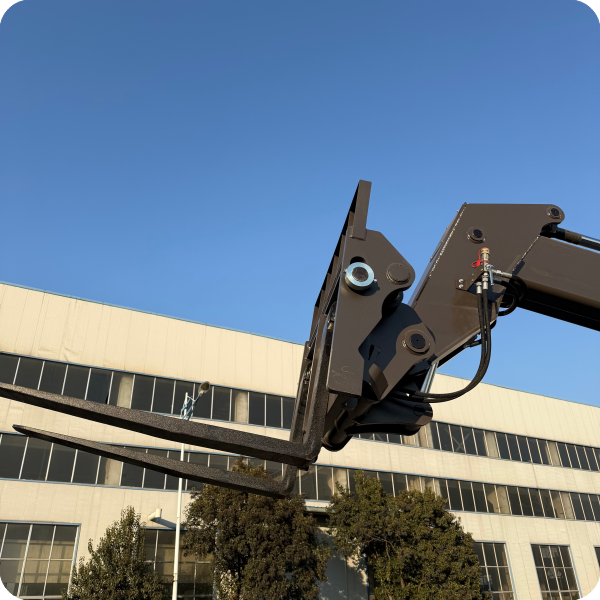

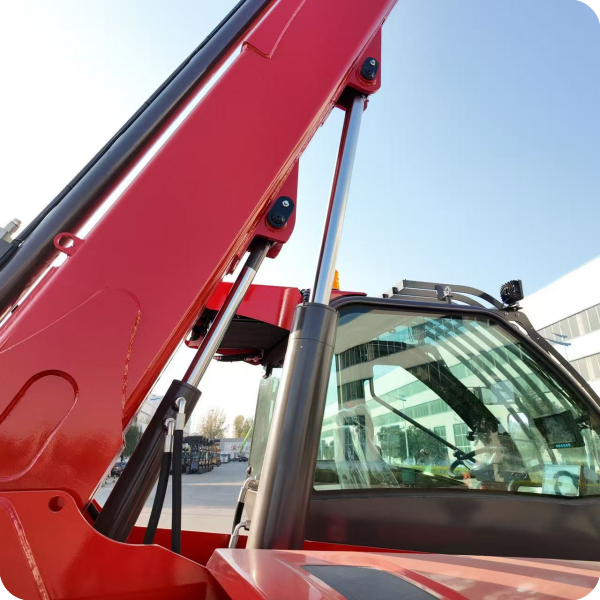

The Boom And Carriage
Boom is manufactured from high tensile steel.
Low maintenance,UHMWPE hard wearing pads.
Self-levelling carriage with hydrualic pin locking quickhitch.accepts pallet forks and a wide range of attachments.One boom end auxiliary hydraulic service fitted as standard.

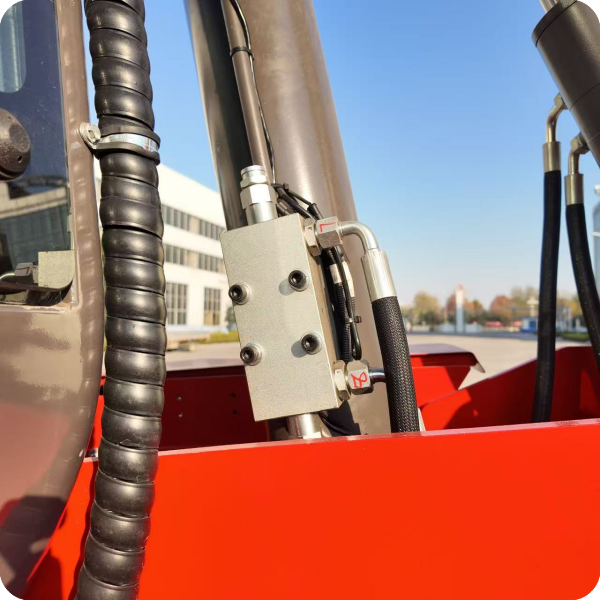

The Safety Check Valves
Fitted to carriage tilt cylinder,telescopic cylinder and boom lift cylinder.
The Steering
Hydraulic cylinder power steering on both axles
Three steer model options:front wheel steer;All wheel steer;crab steer. All operated from in the cab by a selection switch.
The Hydraulic
Gear pump with suction strainer and filter
Operating system pressure | 210 bar |
Main Hydraulic gear pump | 110 Ltrs/min |
Hydraulic cycle times [unload] | Seconds |
Boom raise | 10 |
Boom lower | 7 |
Boom extend | 12 |
Boom Retract | 8.6 |
Bucket dump | 3.4 |
Bucket crowd | 4.8 |

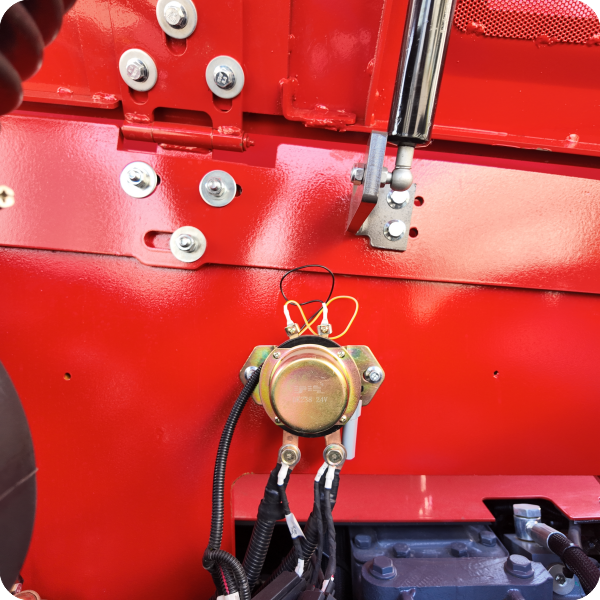

The Electrics
24 Volte negative to earth.12V 80 AH x2 pieces battery.(Yanmar engine 12 Volte negative to earth 12V 80AH×2 pieces)Full road lighting.Reversing light,Direction indicators.Hazard
warning light,Reverse alarm.
The Liquied
Fule tank | Max.capacities | 95 Litres |
Hydaulic tank | Max.capacities | 70 Litres |
Transmission | Allow Max.Capacities | 32 Litres |
Axles(Front &Rear) | Allowed Max.Capacities | 26 Litres |
Colant | Max.Capacities | 16 Litres |

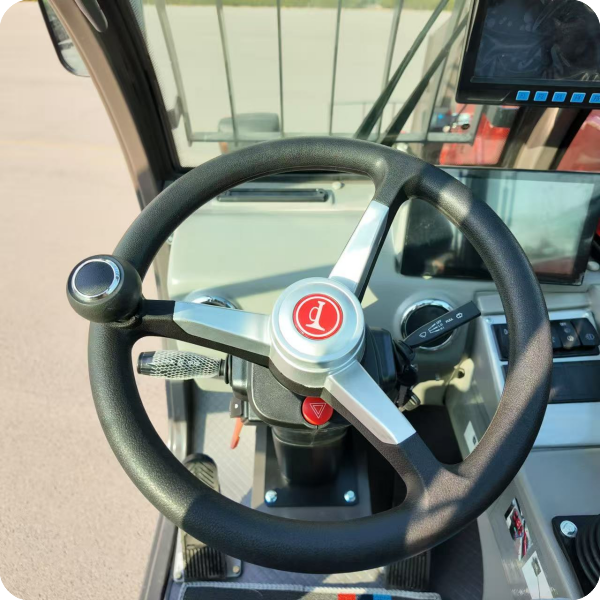

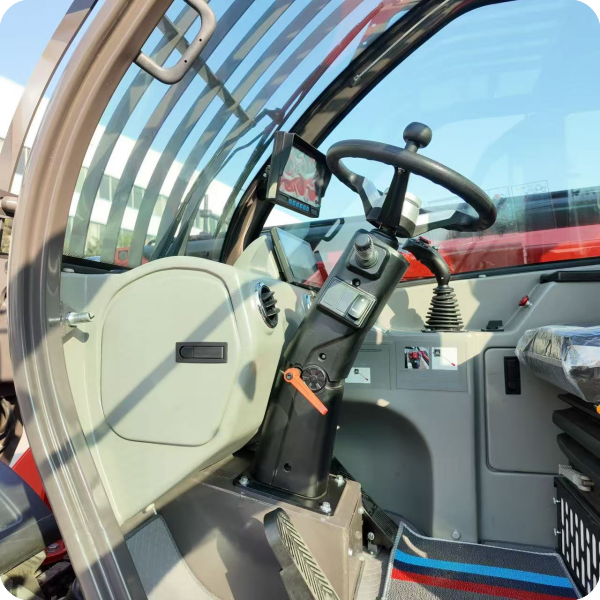

The Cabin
Quiet safe and comfortable cab (Standard engine in idling)with ≤72 dBA.Tinted galss all round. Front windows and skylight FOPS.

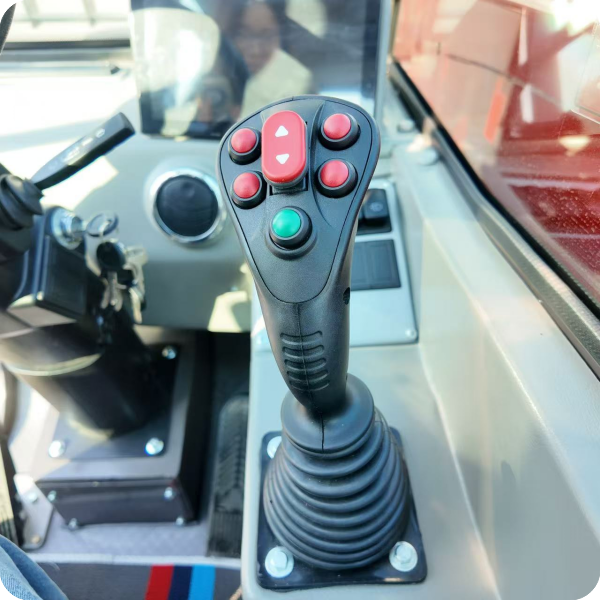

Over weight warning system,Hourmeter,engine and oil temperature,Gear indicator,Fuel gauge. Hydraulic Joystick,quick hitch buttom,Adjustable deluxe seat.Adjustable steer column with stalk powershift changeand forward reverse shuttle.
The Attachments
A big range of attachment fit telehandler quick hitch.bucket size from 0.8 meter width to 2.2 meter.The log fork,grass fork,mix bucket in same option.

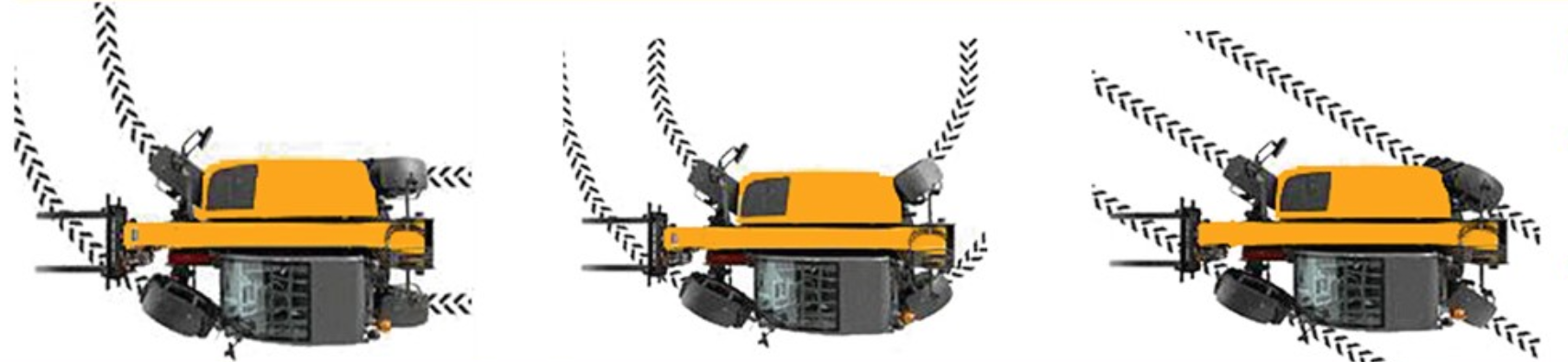

Three Steering Models
Two-wheel steer is perfect for roading;
Four-wheel steer provides great manoeuvrability in tight spaces;
Crab steer is designed to edge your telehandler either close to or away from walls.
