Product Introduction

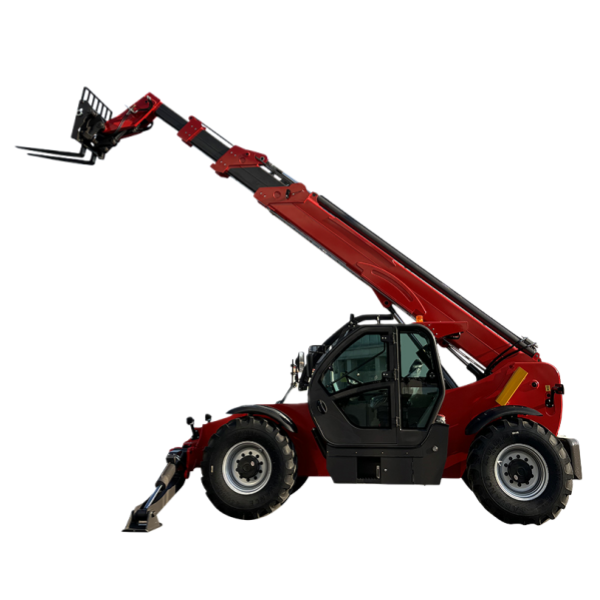

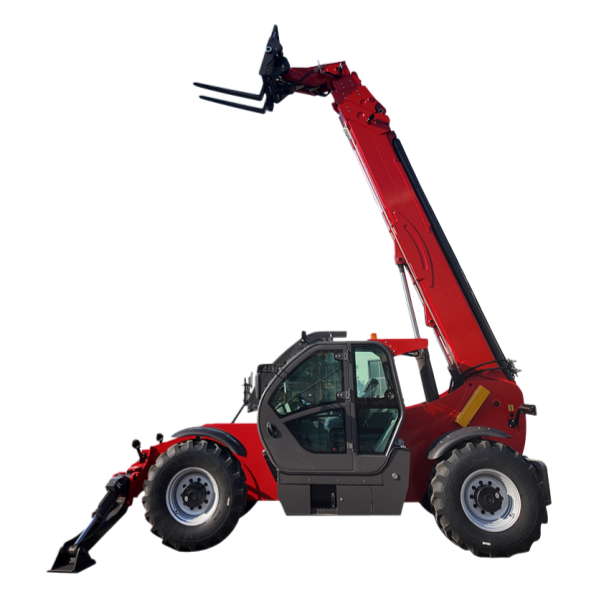

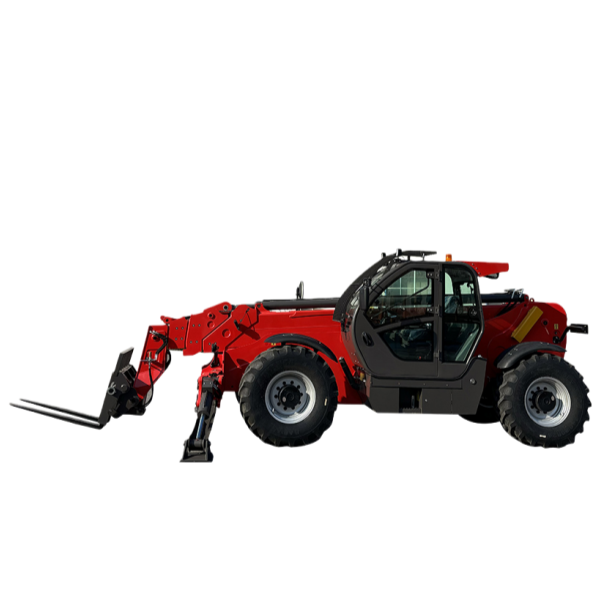

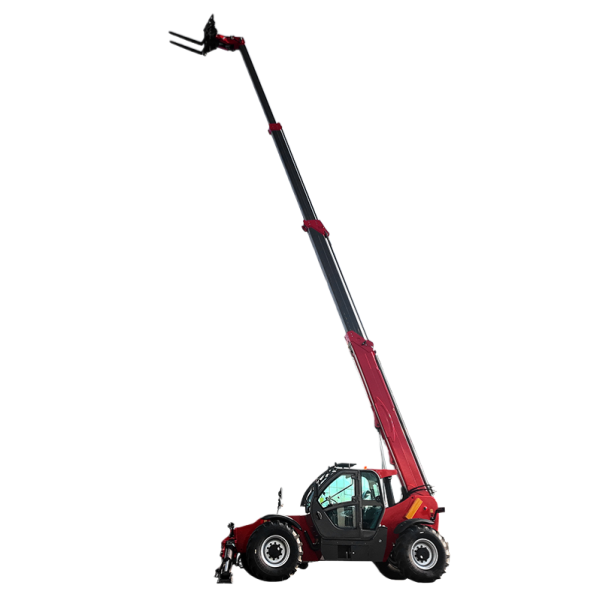

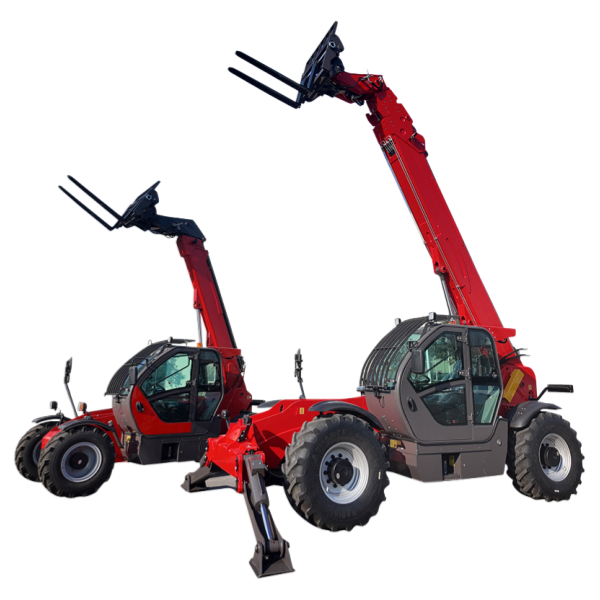

Advantages and features of RG-4018:
1. Heavy load capacity, outstanding operation performance
Equipped with high-strength frame and wear-resistant hydraulic system, the large-tonnage load capacity is suitable for heavy-duty scenarios such as stone, mine and warehousing, with stable lifting without slipping, efficiently completing the handling and stacking of heavy goods.
2. Multi-scenario adaptation, universal for all working conditions
It is suitable for both indoor narrow space and outdoor complex site operations, can flexibly switch operation modes, and is applicable to stone transfer, port loading and unloading, factory warehousing, engineering infrastructure and other fields, one machine with multiple uses to improve utilization rate.
3. High efficiency and energy saving, lower operating costs
Equipped with energy-saving engine/high-efficiency lithium battery system, the power output is stable with lower fuel/electric consumption, combined with intelligent energy-saving start-stop function, reducing invalid energy consumption and greatly lowering operating costs for long-term use.
4. Stable and safe, more secure operation

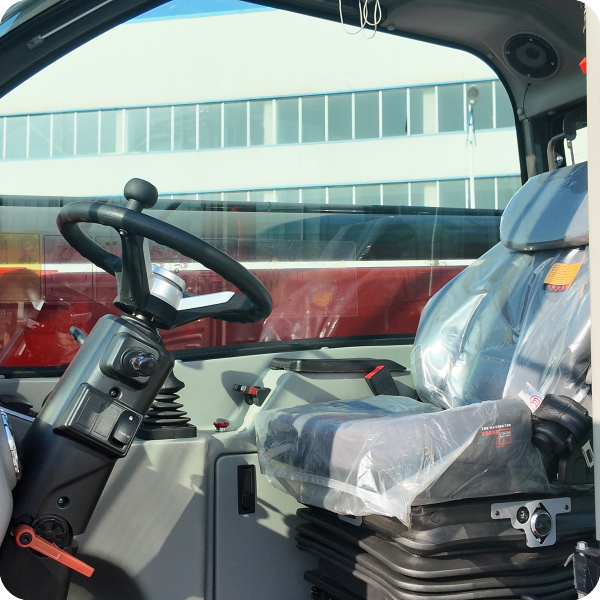

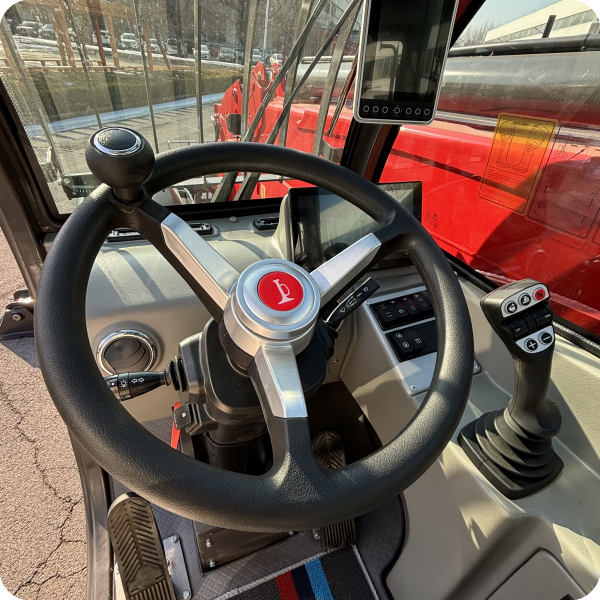

Equipped with multiple safety devices such as anti-rollover, overload protection and emergency braking, the operator cab with wide field of vision is matched with a humanized control panel, which is simple and easy to operate, reducing the risk of operation accidents and ensuring the safety of personnel and goods.
5. Durable and robust, suitable for high-intensity operations
Key components are made of high-quality wear-resistant and corrosion-resistant materials, the whole machine has good sealing performance, can adapt to harsh working environments such as dust and humidity, no failure in high-intensity continuous operation, long service life and reduced maintenance frequency.
6. Flexible control, suitable for complex working conditions
The compact body is matched with a flexible steering system, which can flexibly turn and operate in narrow passages and irregular sites, without the need for a large operating space, solving the problem of limited operation in complex sites.

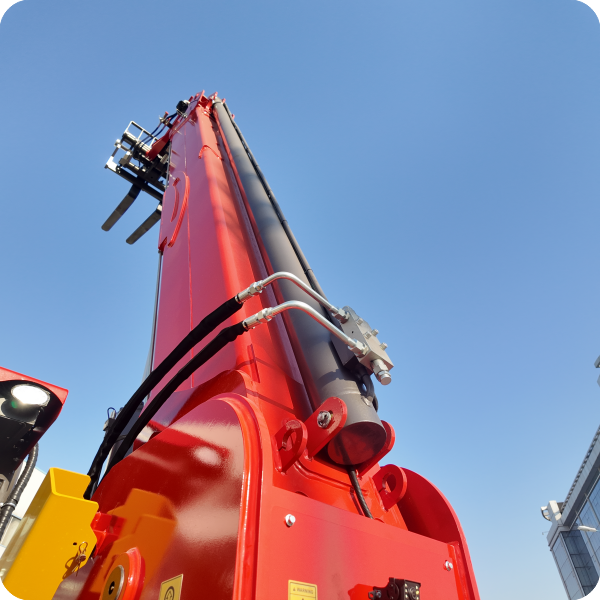

7. Enhanced lifting height, improved space utilization
Optimized hydraulic lifting system and high-strength mast structure, significantly increasing the upper limit of lifting height, suitable for high-position stacking, high-altitude loading and unloading scenarios, effectively activating vertical space and reducing site occupation costs.
Technical Parameters
Operation Parameters
Max. Capacity :4000kg
Max. lifting height :17.6m
Max. Outreach :12.8m
Weight And Dimensions
Overall length to carriage :6.4m
Length to face of forks:7.62m
Min transport size :5.6m
Overall width :2.35m
Track width :1.95m
Overall height :2.55m
Wheelbase :3.6m
Ground clearance :0.38m
Overall cab width:0.84m
Tilt-up angle:12°
Tilt-down angle:90°
External turning radius(over tyres):4.1m
Unladen weight(with fork) :13600kg

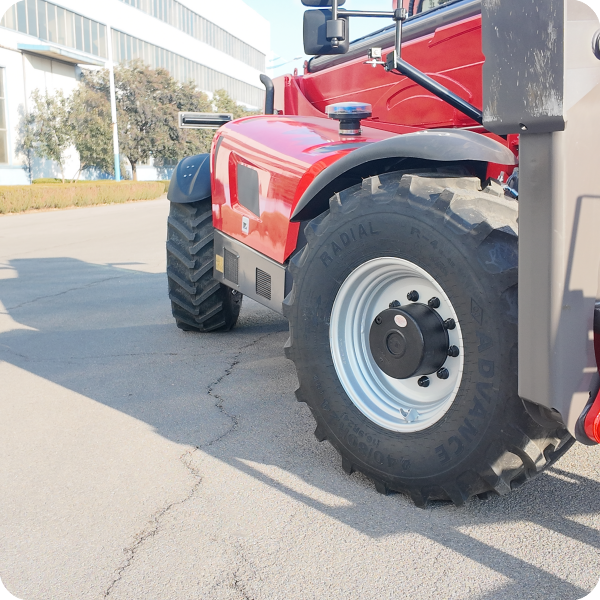

Tires type :Tubeless

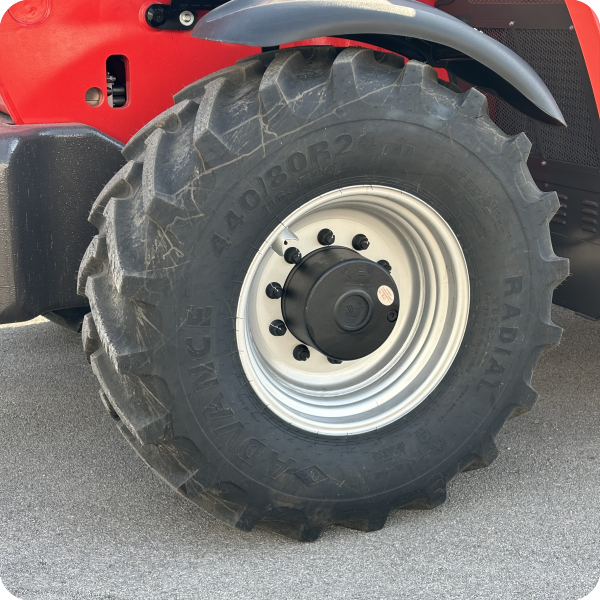

Standard tires :440/80-24

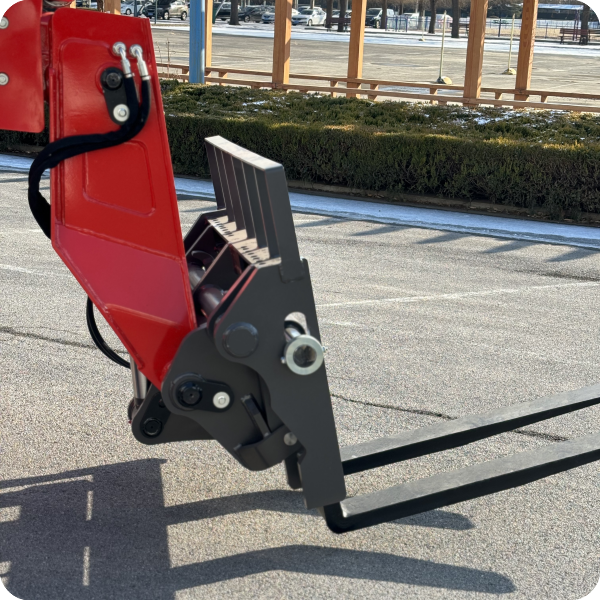

Forks length/ width/ section:1220mm x 125mm / 50mm
Action Duration
Lifting :16s
Lowering:12.4s
Extension:17.3s
Retraction :13s
Crowd :4.8s
Dump :4.0s

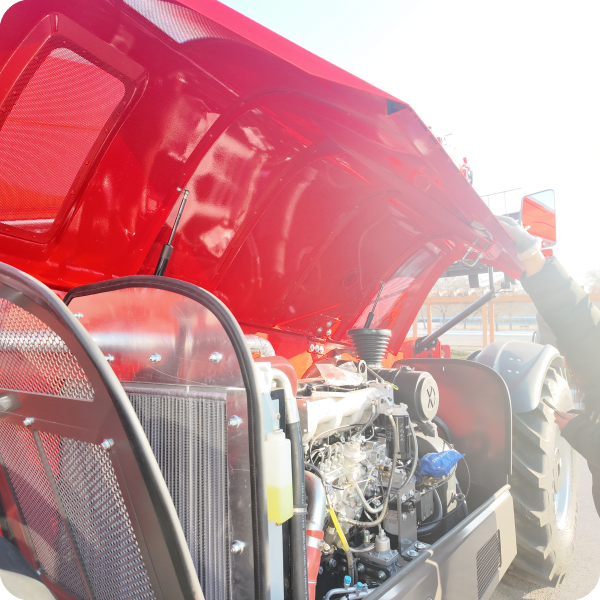

Engine
Engine brand :Yuchai（Customizable）
Engine norm : National II（Customizable）
Max. fuel sulphur content:5000 ppm
Engine model :YCD4J22T-115（Customizable）
Number of cylinders / Capacity of cylinders :4 - 4400 cm³
I.C. Engine power rating - Power :114 Hp / 85 kW
Max. torque / Engine rotation :400 Nm @ 1400 rpm
Drawbar pull (Laden) :9930 daN
Transmission
Transmission type:Torque converter
Number of gears (forward / reverse) :4 / 4
Max. travel speed :40 km/h
Parking brake:Automatic air-cut brake
Service brake: immersed multi-discs braking on front & rear axles
Hydraulics
Hydraulic pump type :Gear pump变速箱
Hydraulic flow :150L
Tank capacities
Engine oil :5.5L
Hydraulic oil:170L
Fuel tank :195L
Noise And Vibration
Noise at driving position (LpA) :79 dB
Noise to environment (LwA):106 dB
Vibration on hands / arms:< 2.50 m/s²
Miscellaneous
Steering wheels (front / rear) :2 / 2
Drive wheels (front / rear) :2 / 2
Safety cab homologation : FOPS level 2 cab
Product Details
