Overall Dimension

1

Length(With Bucket On Ground)

7450MM

2

Overall Width（at stabilizer）

2680MM

3

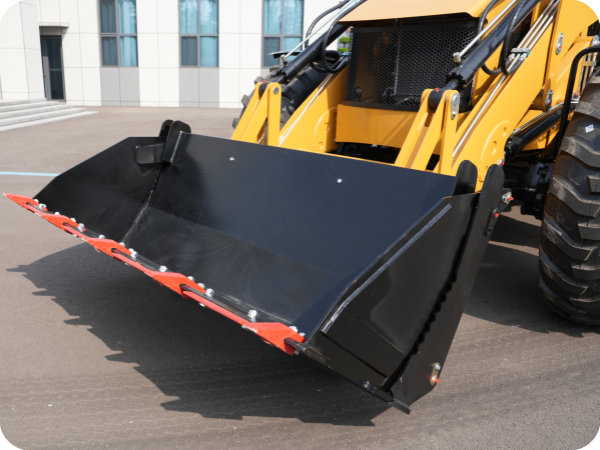

Load Bucket Width

2110MM

4

Height(To The Top Of The Cab)

3080MM

5

Height(To The Top Of The Digging Pole)

3600MM

6

Wheel Base

2335MM

7

Back Wheel Tread

2139MM

Main Loading Technical Specification

1

Rated Load

3000KG

2

Operating Weight

8000KG

3

Rated Bucket Capacity

1.7M³

4

Max. Dump Clearance

3100MM

5

Dump Reach

870MM

6

Radius Of Turn（Outside Of Bucket）

5750MM

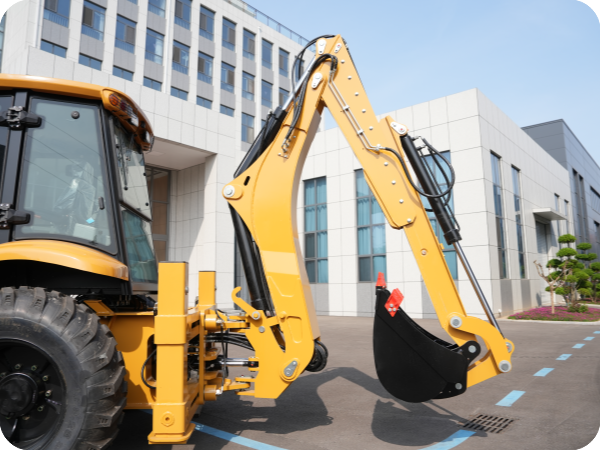

 Main Digging Technical Specification

1

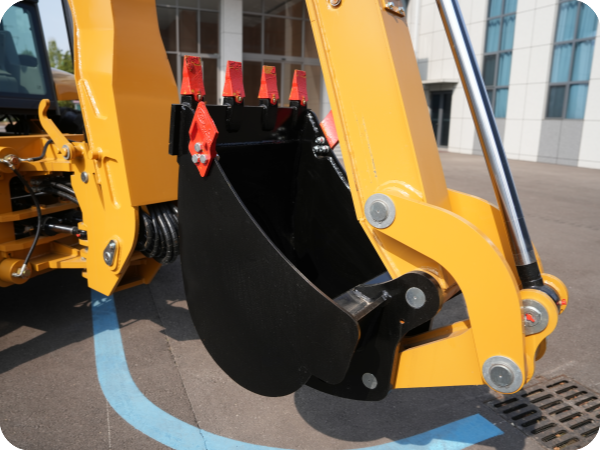

Rated Digging Bucket Capacity

0.35M³

2

Max. Digging Depth

4100MM

3

Optional Digging Depth(Telescopic Digging Boom)

5100MM

4

Max. Digging Radius

5345MM

5

Max. Dumping Height

3740MM

6

Max. Digging Height

5470MM

7

Lifting Force at Max. Digging Radius

1220KG

Diesel Engine

1

Brand/Model

YUCHAI YCD4J22T-125

2

Type

In Line，Direct injection，Four-Stroke，Water Cooling

3

Rated Output

91(KW)

4

Optional Engine

YUCHAI 110KW YCD4J33T6-140

CUMMINS 4BT3.9-C100 or 4BT3.9-C125

CUMMINS EURO3 QSB3.9-C100 or QSB3.9-C125

EURO5 YUCHAI or EPA4 CUMMINS

 Transmission System

1

Torque Converter

Model

315

Cooling Type

Pressure oil circulating

2

Gearbox

Type

Synchromesh mechanical shift

3

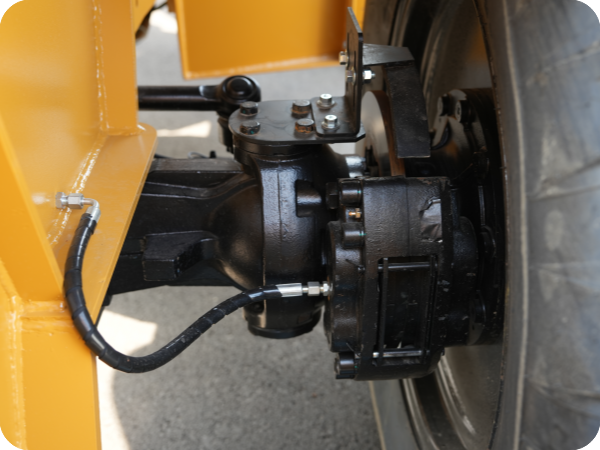

Drive Axle

Type

Four wheel drive

Four wheel steering

Crab walk

4

Gear Shift Position

4 F、 4 R

5

(F/R）KM/H

F1，5km/h；F2，10km/h；

F3，18km/h；F4，40km/h；

R1，5km/h；R2，10km/h；

R3，18km/h；R4，32km/h；

6

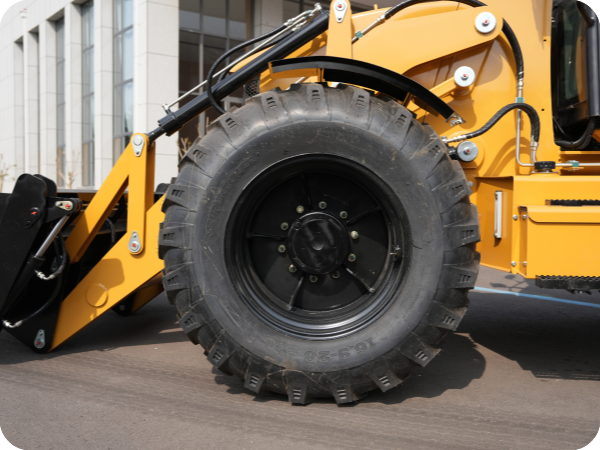

Size Of Tire

16.9-28

The Hydraulic System

1

Working Pump Discharge

63ML/R

2

Working Pump Pressure

22MPA

Oil Capacity

1

The Hydraulic Oil Tank

125L

2

Diesel Fuel Tank

125L

Packing Quantity（1*45HC）

2Units

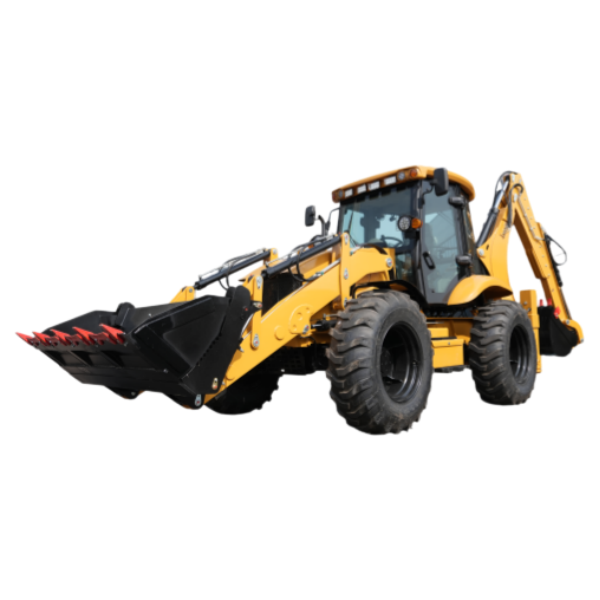

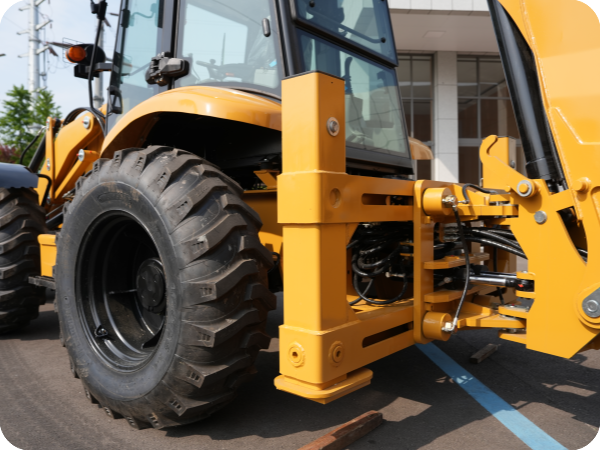

Standard：Configuration: Front loader with bucket; rear excavator with digging bucket; deluxe cabin interior featuring a fan, LED lighting, large-view rearview mirrors, safety hammer, fire extinguisher, sliding windows, sunroof, and heater; deluxe adjustable swivel seat; adjustable instrument panel; color LCD display; hydraulic pilot controls for both front loader and rear excavator; Yuchai 91kW engine; 16.9-28 tubeless tires (front and rear); custom-engineered 315 integrated high/low-speed transmission; four-wheel steering; four-wheel drive; crab steering mode; three selectable steering modes; H-type outriggers.

The parameters or configuration are subject to change without notice.
