Overall Operating Weight

8000KG

Transport Dumension

MM L*W*H

7600×2260×2980MM

轴距Wheelbase

2250MM

Min.Ground Cleaarance

300MM

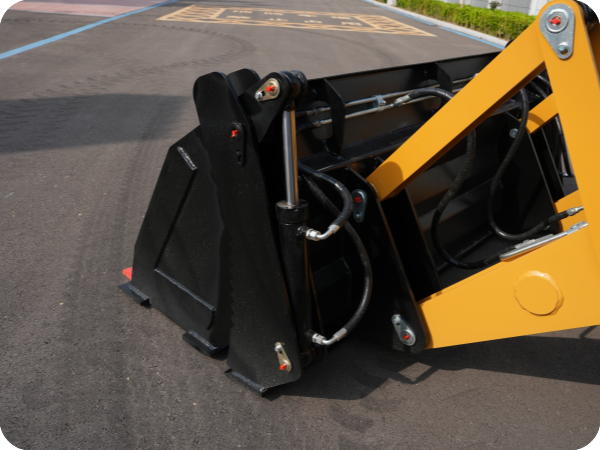

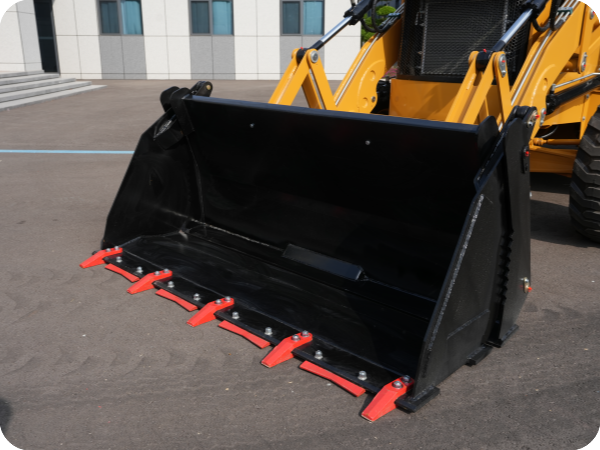

Bucket Capacity

1.5M³

Breakout Force

38KN

Loading Lifting Capacity

2800KG

Bucket Dnmoing Height

2800MM

Bucket Dnmoing Distance

1062MM

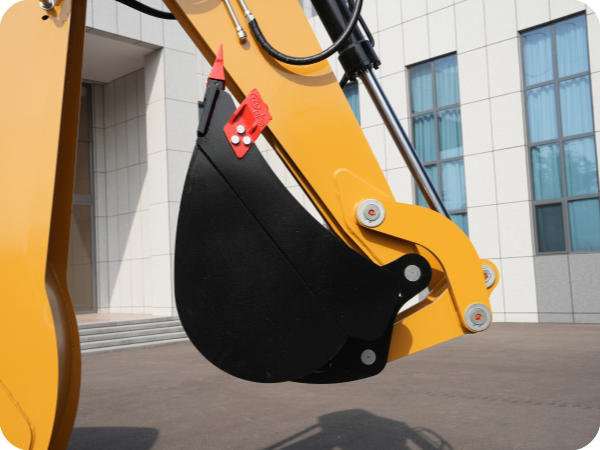

Backhoe Capacity

0.3M³

MAX.Digging Depth

4100MM

Optional Digging Depth

5000MM(Excavator Boom with Telescopic Extension)

Swing Angle of backhoe

190°

Max. Pulling Force

39KN

Engine

Type

In Line,Direct injection,Four-Stroke,WaterCooling

Rated Power

76KW

Engine

CUMMINS 74KW 4BT3.9-C100

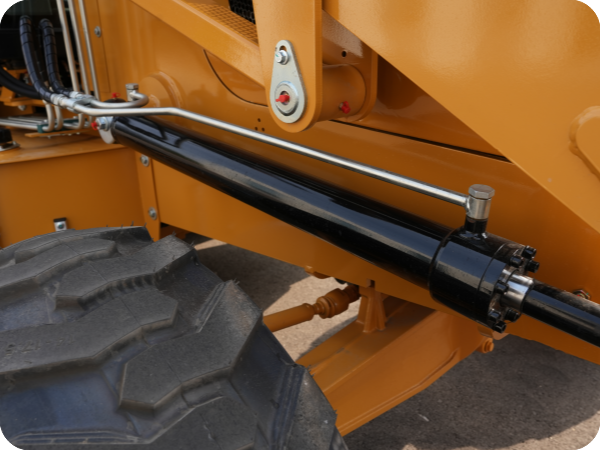

Steering System

Steering Angle

±36°

Min.Turning Radius

6581MM

Pressure Of The System

12Mpa

Axle

Brand

FEICHENGYUNYU

Main Transmission Type

Double Reduction

Final Reducer

Single Stage Final Reducer

Rated Loader of Axle

4/18.5T

Transmission System

Torque Converter

Model

YJ280

Type

Single-stage Three Elements

Cooling Method

Oil-cooling Pressure Circulation

Gearbox

Type

Fixed Shaft Power Transmission

Gears

Two Gears Ahead,Two Gears Ahead

Max. Speed

30KM/H

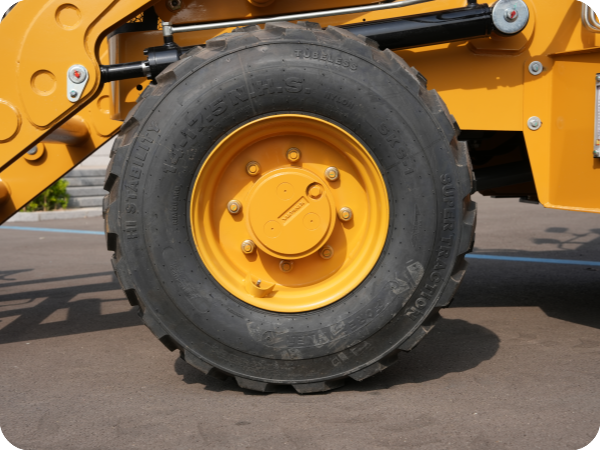

• Tyre

Model

(F)14-17.5（R）19.5L-24

Pressure of Front Wheel

0.22Mpa

Pressure of Back Wheel

0.22Mpa

Brake System

Service Brake

Air Over Oil Caliper Brake

External Type

Self-balance

Self-balance

Emergency Brake

Operation Power Implementing brake

Manual Operation Power Termimating Brake

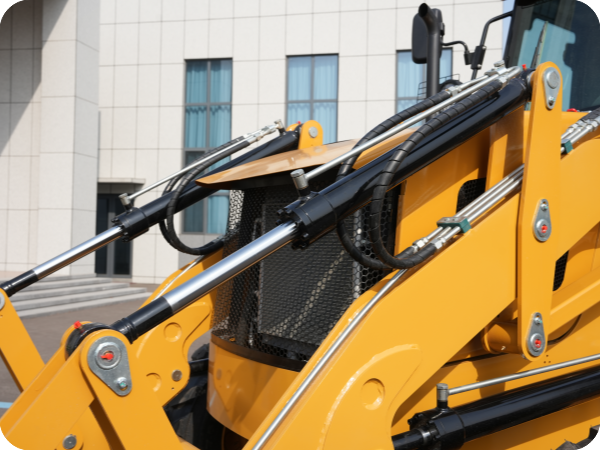

Hydraulic System

Pressure of Hydraulic System

22Mpa

Digging Power of Excavator Grab

46.5KN

Digging Power of Dipper

31KN

Bucket Lifting Time

5.4s

Bucket Lowering Time

3.1s

Bucket Discharge Time

2.0s

Packing Quantity(l*40HC)

2Units(Remove tires, boom, and bucket; pack into a shipping crate using specialized fixtures.）
