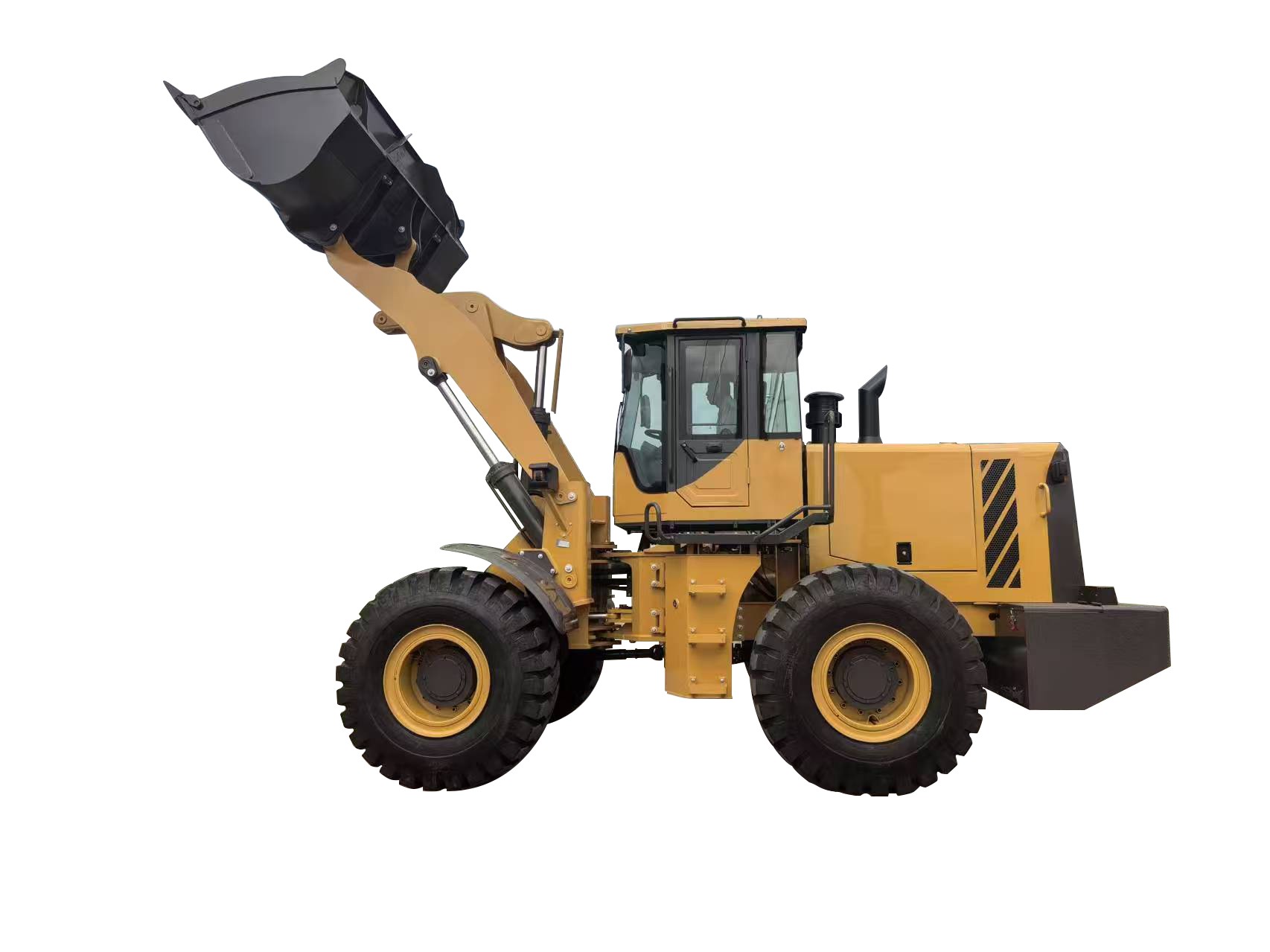

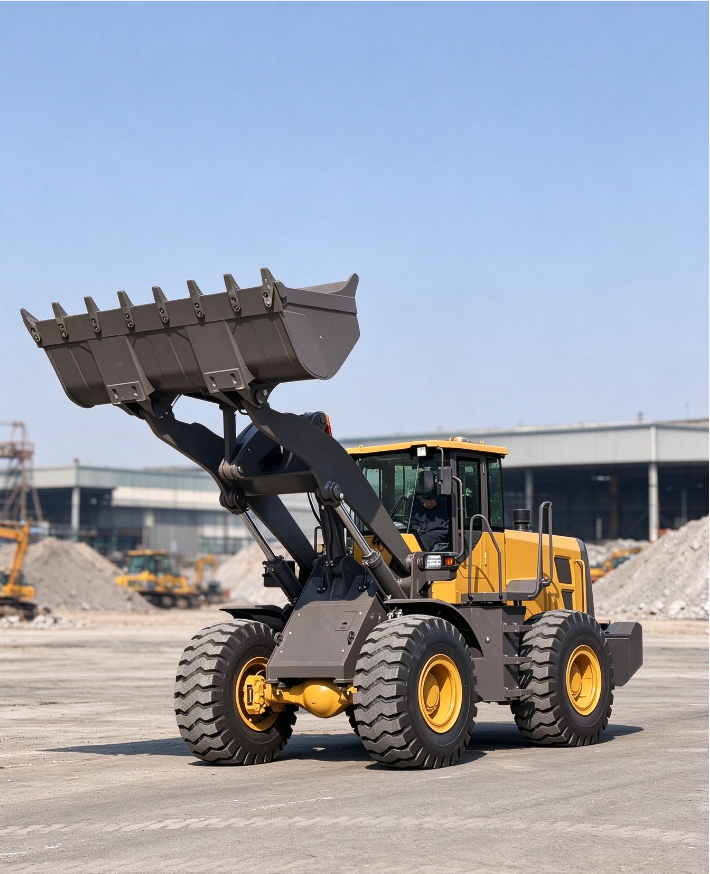

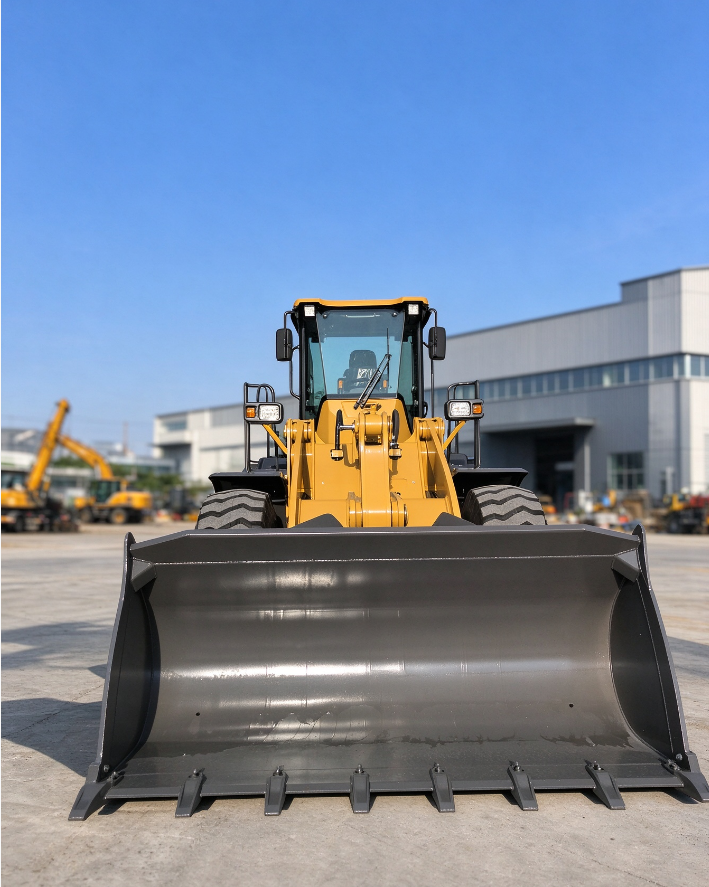

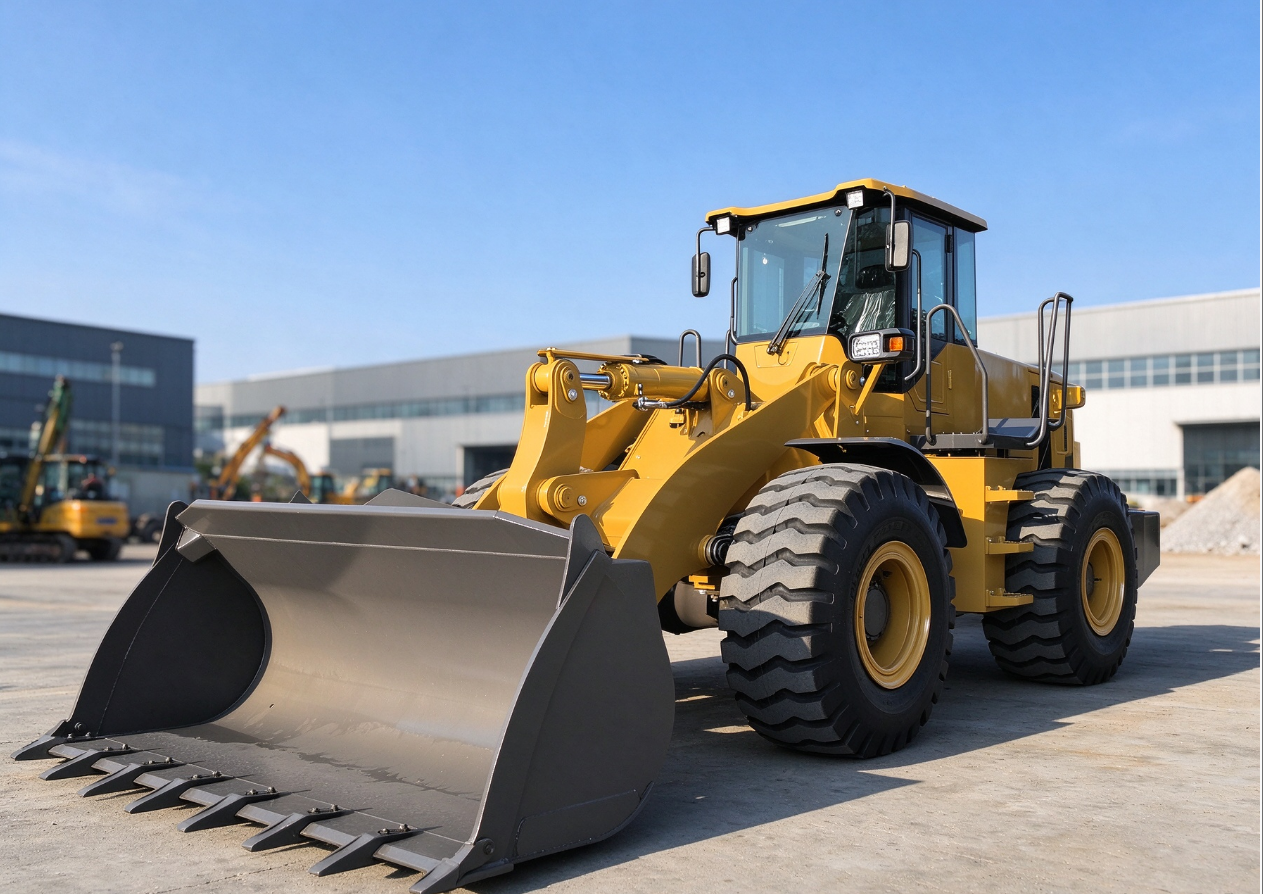

Description

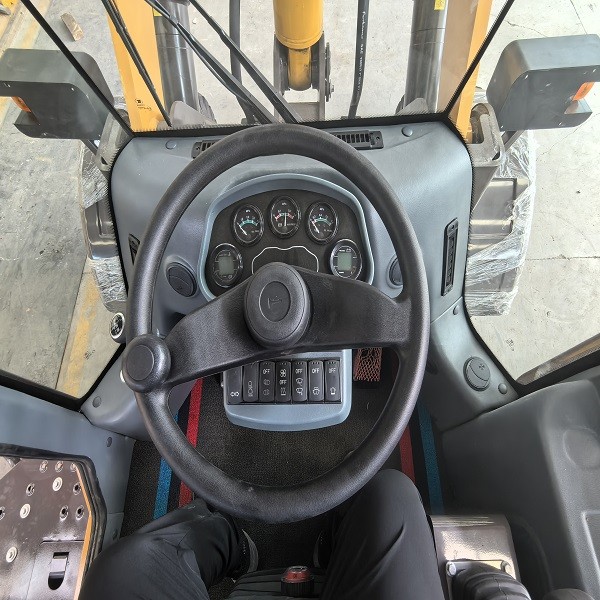

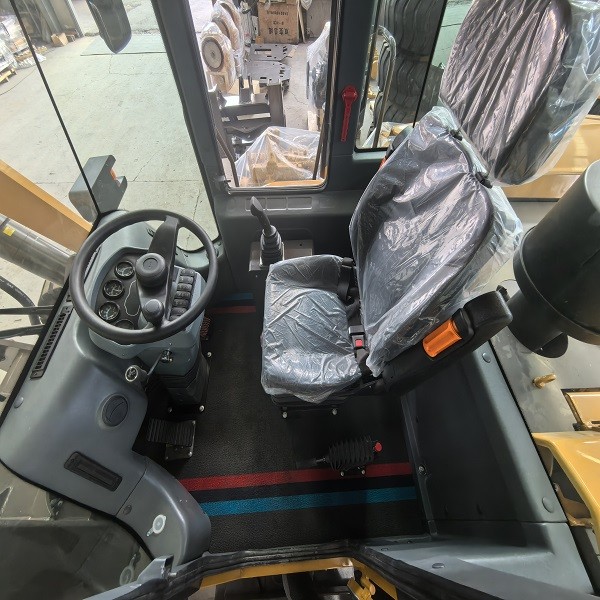

| Overall System Specifications | |||
| Descriptions | Parameters | Descriptions | Parameters |
| Rated Load | 5000 kg | Max Speed | 38,km/h |
| Operating Weight with Standard Bucket | 16700 kg | Tire Size | 23.5-25 |
| Bucket Capacity | 3m³ | Tire Type | Bias |
| Wheel Base | 3000mm | Tire Layer | 16 |
| MIN Ground Clearance | 534mm | Tire Tread Type | E3/E3 |
| Overall Dimension | 7950×2980×3420mm | Axle Model | Q140 AN / ZL50M |
| Breakout Force | 162kN | Main Drive Type | Spiral bevel gear, single stage |
| Maximum Dump Height | 3300mm | Final Drive Type | Planetary type, single stage |
| Maximum Discharge Distance | 1140mm | Oscillating Angle | ±11 ° |
| MAX Working Height | 4250mm | ||
| Articulated Angle | 1.37×R/37 | ||
| Engine & Transmission Parameters | |||
| Descriptions | Parameters | Descriptions | Parameters |
| Engine Model | WD10G220E22 | Transmission Type | Countershaft, power shift |
| Rated Power | 162kW/220hp | Gear Shift | ZF/R1 |
| Rated Speed | 2200 r/min | Torque Converter Type | Single-stage, single-phase, 4-element, dual-turbine |
| Displacement | 9.726L | Torque Converter Maker & Type | T180 |
| Max Speed | F/38km/h | ||
| Hydraulic & Brake System | |||
| Descriptions | Parameters | Descriptions | Parameters |
| Implement Pump | Working 275 L/min, Steering 176 L/min, 22 L/min | Service Brake | Air-to-oil control |
| Implement System Type | Twin pump flow merging hydraulic system | Parking Brake | Drum shoe brake, spring applied & oil released |
| Boom Raise Time | 5.8-6.8s | Hydraulic Cycle Time | 9.5-10.5s |
| System Pressure Setting | 17±1MPa | Fuel Tank | 285L |
| Steering System | |||
| Descriptions | Parameters | Descriptions | Parameters |
| System Type | Coaxial flow amplification steering | System Pressure Setting | 15±1MPa |
| Steering Pump Type | Gear pump | Steering Angle (L/R) | 38±1° |
