Product Introduction
Advantages and features of wheel diesel loaders:
1. Strong power performance: The diesel engine has a high torque and power output, which can provide strong power for the loader. This enables it to easily handle various heavy-duty operations, such as transporting large building materials, excavating hard soil or ores, and it can maintain a stable working state under complex working conditions.
2. Good mobility: The wheeled design gives the loader good flexibility and steering performance, allowing it to quickly turn and turn around in narrow spaces. At the same time, it can be quickly transferred between different work sites, adapting to a variety of different working environments, which improves the utilization efficiency of the equipment.
3. High operation efficiency: Relying on strong power and an efficient hydraulic system, the wheeled diesel loader can quickly complete operations such as shoveling, transporting, and unloading, shortening the single operation cycle time, thus completing more work in a unit of time and improving the overall operation efficiency. 4. Strong stability: The wheeled diesel loader usually adopts a reasonable counterweight design and a sturdy frame structure, which can maintain good stability during operation. Even on uneven ground or when performing operations with a large load, it can ensure that the equipment will not tip over or shake, ensuring the safety of operators and the smooth progress of operations.
5. Good durability: The diesel engine has a solid structure, and its components have high durability, capable of withstanding long-term and high-intensity working loads. At the same time, the overall mechanical structure of the loader is carefully designed, and key components are made of high-quality materials, with high wear resistance and fatigue resistance, reducing the frequency of failures and extending the service life of the equipment.
6. Wide application range: By replacing different working devices, such as buckets, fork tools, grabs, etc., the wheeled diesel loader can achieve multiple functions and is suitable for different operation scenarios in various fields such as construction, mining, logistics, agriculture, and road construction, with strong versatility.
7. Good fuel economy: Diesel has a high energy density. Compared with some other fuels, the diesel engine can consume less fuel under the same power output, with good fuel economy. This helps to reduce the operating cost of the equipment, especially in long-term and large-scale operations, the savings in fuel costs are more significant.
8. Convenient maintenance: The structure of the wheeled diesel loader is relatively simple, and the layout of its components is reasonable, making it convenient for maintenance personnel to conduct daily inspections, maintenance, and repair work. Moreover, the accessories for diesel engines and loaders in the market are relatively abundant and easy to obtain, reducing the difficulty and cost of maintenance.
Technical Parameters
ZL936YN-3.6m | |||
Machine parameters (theoretical parameters) | Machine parameters | ||
project | parameter | project | parameter |
Minimum turning radius (MM) | 5000 | Vehicle length (MM) | 5700 |
Theoretical climbing angle (°) | 15 | Vehicle width (MM) | 2100 |
Maximum driving speed (KM) | 32 | Vehicle height (MM) | 2890 |
Minimum driving speed (KM) | 8 | Minimum ground clearance (MM) | 350 |
Maximum front/side dump height (MM) | 3600/4180 | Track width (MM) | 1330 |
Idle lifting time (S) | ≤5.8 | Rated loading mass (KG) | 2000 |
No load descent time (S) | ≤4.1 | Whole machine weight(KG) | 5200 |

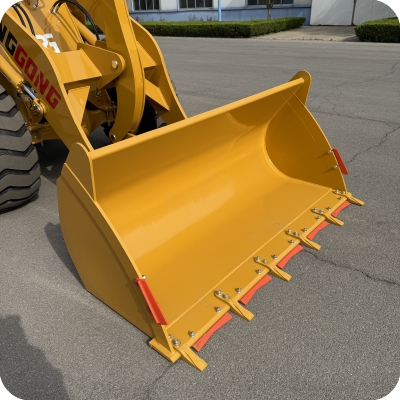

Unloading time without load (S) | ≤1.2 | Bucket length, depth, and height (MM) | 2000*450*860 |
Three items and (S) | ≤11.1 | Dou Rong (M³) | 1.2 |
wheelbase (MM) | 2380 | Maximum Rising Power (KN) | 43 |
Unloading distance (MM) | 800 | Maximum traction force (KN) | 59 |
Unloading angle (°) | 35.1 | Joint working condition traction force (KN) | 33 |
Engine parameters | Transmission system parameters | ||
project | arameter | project | parameter |
manufactor | Yunnai Guoiv | type | 265 dual high and low speed 265 |
Rated power (KW) | 36.8KW/Frequency conversion 77 | Shift gears | 4Front 4, Rear 4 |
Rated speed (R/Min) | 2400 | Braking form | Air brake |
Number of cylinders | 4 | Car axle | Big wheel edge |

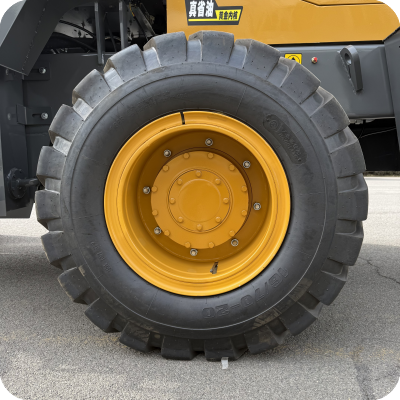

Number of horizontal bar valves | 2 | Tire model | 16/70-20 |
Maximum torque (Nm/R/Min) | 360N.m≤1600-1800r/min | Front wheel pressure (Mpa) | 0.33 |
displacement (L) | 3800 | Rear wheel pressure (Mpa) | 0.3 |
Cylinder diameter and stroke (MM) | 102-115 | ||
steering system | Refueling capacity | ||
project | parameter | project | parameter |
type | Fully hydraulic steering | Theoretical solvent for fuel (L) | 68.8 |
Steering angle (°) | 32.5 | Theoreticalsolvent for hydraulic oil (L) | 68.5 |
System work pressure (Mpa) | 16 | Bridge Single (L) | 14 |
engine oil (L) | 6.5 | ||
Transmission gear oil (L) | 24 | ||
braking system (L) | 3 |

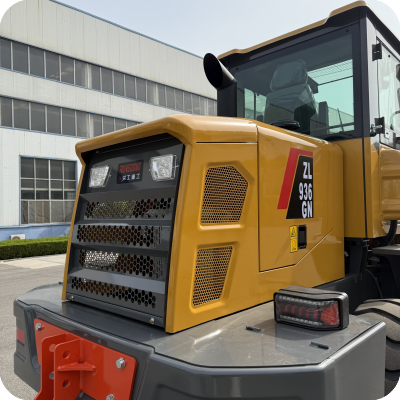

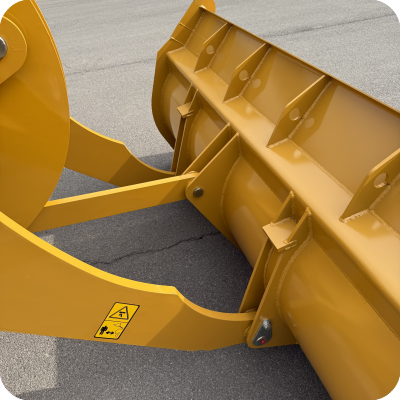

Product Details
