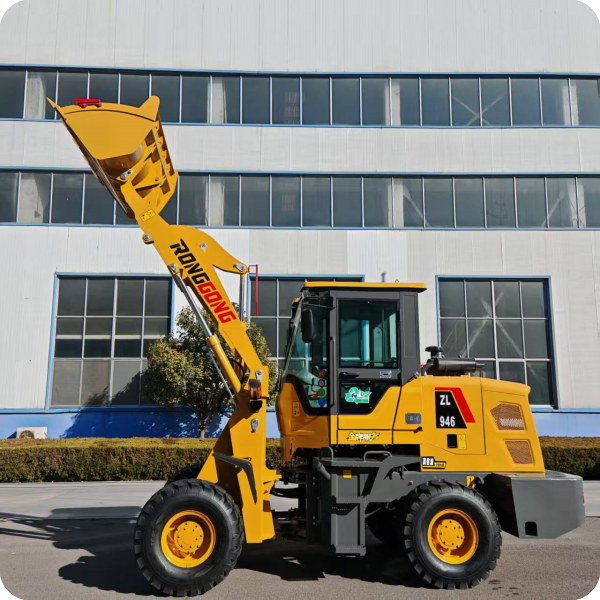

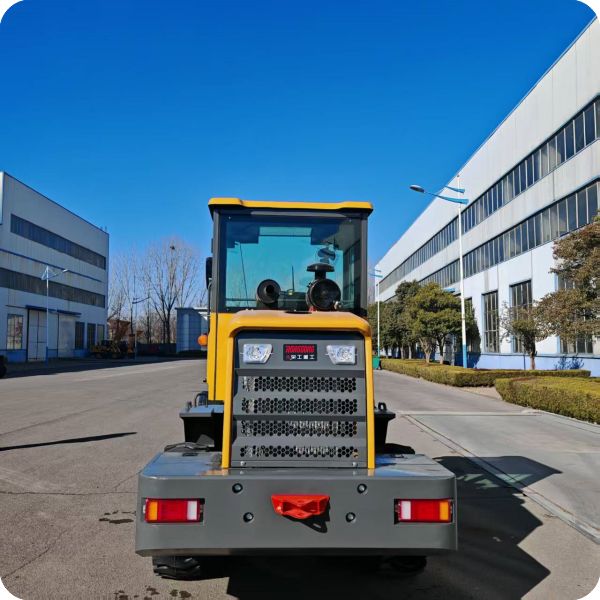

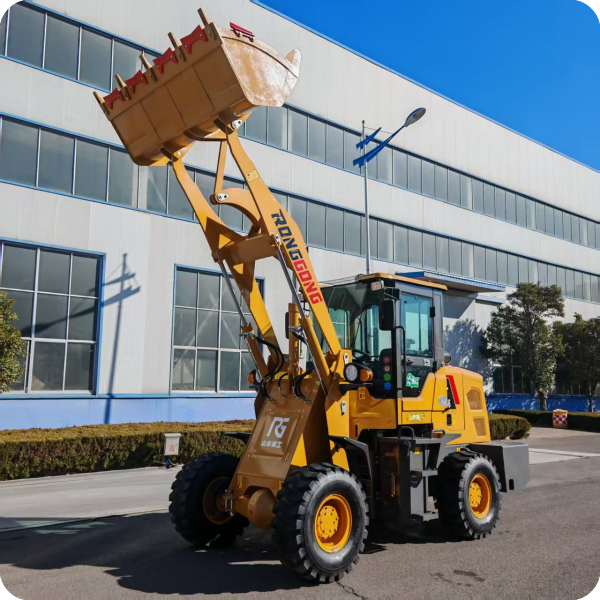

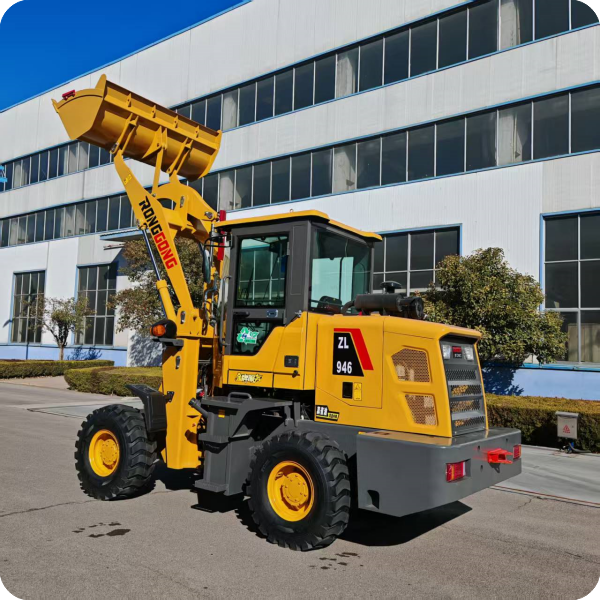

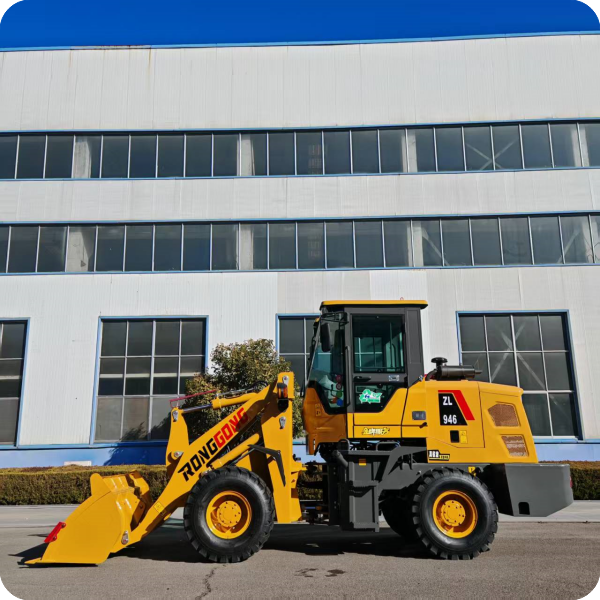

ZL-926 Wheel Loader

ZL-926 Wheel Loader
Product Introduction:

Construction, Mine Exploitation, Logistics and Warehousing, Agricultural Production, Road Construction and Maintenance, Industrial Production, Municipal Engineering.


Send Inquiry
Description

Product Introduction


Advantages and features of wheel diesel loaders:

1. Strong power performance: The diesel engine has a high torque and power output, which can provide strong power for the loader. This enables it to easily handle various heavy-duty operations, such as transporting large building materials, excavating hard soil or ores, and it can maintain a stable working state under complex working conditions.

2. Good mobility: The wheeled design gives the loader good flexibility and steering performance, allowing it to quickly turn and turn around in narrow spaces. At the same time, it can be quickly transferred between different work sites, adapting to a variety of different working environments, which improves the utilization efficiency of the equipment.

3. High operation efficiency: Relying on strong power and an efficient hydraulic system, the wheeled diesel loader can quickly complete operations such as shoveling, transporting, and unloading, shortening the single operation cycle time, thus completing more work in a unit of time and improving the overall operation efficiency. 4. Strong stability: The wheeled diesel loader usually adopts a reasonable counterweight design and a sturdy frame structure, which can maintain good stability during operation. Even on uneven ground or when performing operations with a large load, it can ensure that the equipment will not tip over or shake, ensuring the safety of operators and the smooth progress of operations.

5. Good durability: The diesel engine has a solid structure, and its components have high durability, capable of withstanding long-term and high-intensity working loads. At the same time, the overall mechanical structure of the loader is carefully designed, and key components are made of high-quality materials, with high wear resistance and fatigue resistance, reducing the frequency of failures and extending the service life of the equipment.

 6. Wide application range: By replacing different working devices, such as buckets, fork tools, grabs, etc., the wheeled diesel loader can achieve multiple functions and is suitable for different operation scenarios in various fields such as construction, mining, logistics, agriculture, and road construction, with strong versatility.

7. Good fuel economy: Diesel has a high energy density. Compared with some other fuels, the diesel engine can consume less fuel under the same power output, with good fuel economy. This helps to reduce the operating cost of the equipment, especially in long-term and large-scale operations, the savings in fuel costs are more significant.

8. Convenient maintenance: The structure of the wheeled diesel loader is relatively simple, and the layout of its components is reasonable, making it convenient for maintenance personnel to conduct daily inspections, maintenance, and repair work. Moreover, the accessories for diesel engines and loaders in the market are relatively abundant and easy to obtain, reducing the difficulty and cost of maintenance.


Technical Parameters


ZL-926GN-3.2M

Parameters of the whole machine

Parameters of the whole machine

project

parameter

project

parameter

Minimum turning radius (MM)

4800

Body length (MM)

5400

Theoretical climbing angle (°)

15

Body width (MM)

1850

Maximum travel speed (KM)

32

Vehicle height (MM)

2750

Minimum travel speed(KM)

8

Minimum ground clearance (MM)

255

Maximum unloading height (MM)

3200

tread (MM)

1500

No-load lifting time (S)

≤4.8

Rated loading mass (KG)

1600

No-load drop time (S)

≤3.1

The weight of the whole machine (KG)

4600

No-load unloading time (S)

≤1.2

Bucket length. Deep. high (MM)

1800*450*860

Three and (S)

≤9.1

Dourong (M³)

0.7

wheelbase (MM)

2250

Maximum Rising Force (KN)

22

Discharge distance (MM)

800

Maximum traction (KN)

28

Discharge angle (°)

35.1

Combined service traction (KN)

26

Engine parameters

Drivetrain parameters

project

parameter

project

parameter

factory

Yunnai

version

265 double high and low speed

Rated power (KW)

55

Shifting gears

The first four and the last four

Rated speed (R/Min)

2400

Brake form

Air brakes

Rated speed

4

Axles

Small wheel side

Fuel supply system

Single/VP pumps

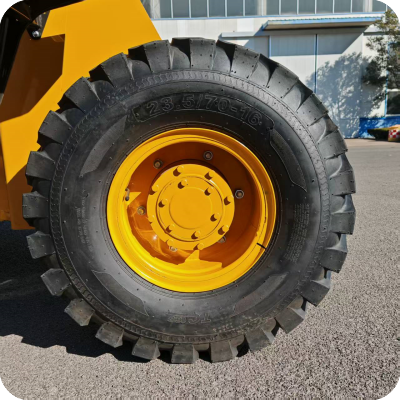

Tire model

23.5-70/16

Maximum torque (Nm/R/Min)

175

Front wheel pressure (Map)

0.33

Displacement (L)

2.7

Rear wheel pressure (Map)

0.3

Bore. itinerary

93-100

Steering system

Refueling capacity

project

parameter

project

parameter

version

Fully hydraulic steering

Fuel theory solvents (L)

65.5

Steering angle (°)

32.5

Theoretical volume of hydraulic fluid (L)

65.5

System operating pressure (Mpa)

16

Bridge single (L)

14

Engine oil (L)

6.5

Transmission gear oil (L)

24

Braking system (L)

3

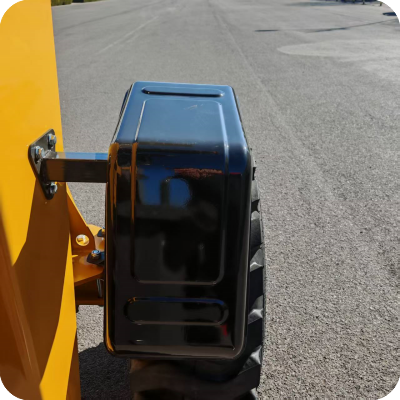

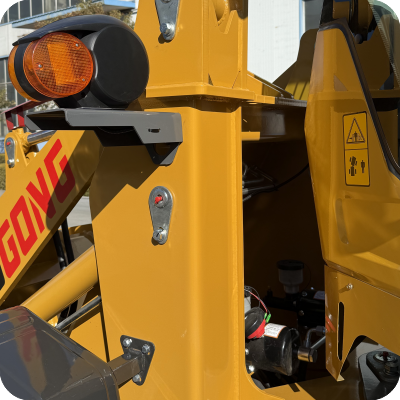

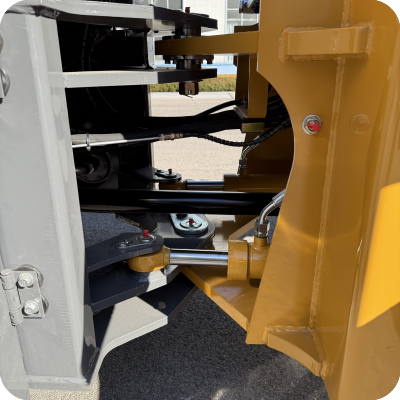

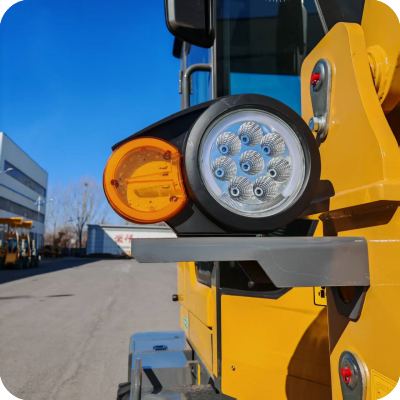

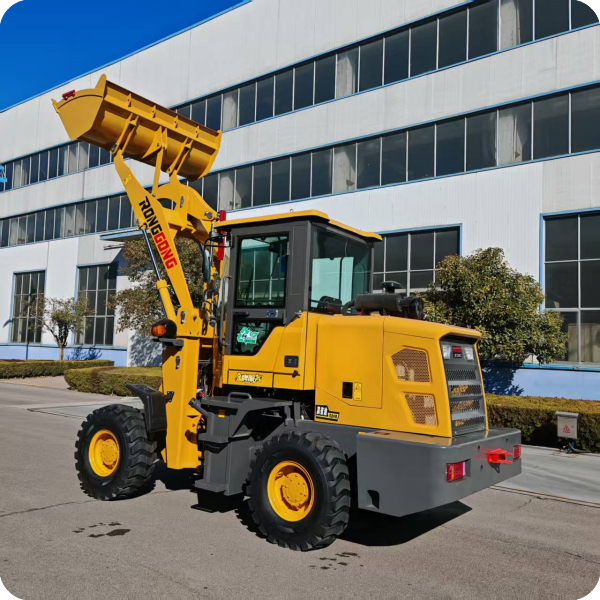

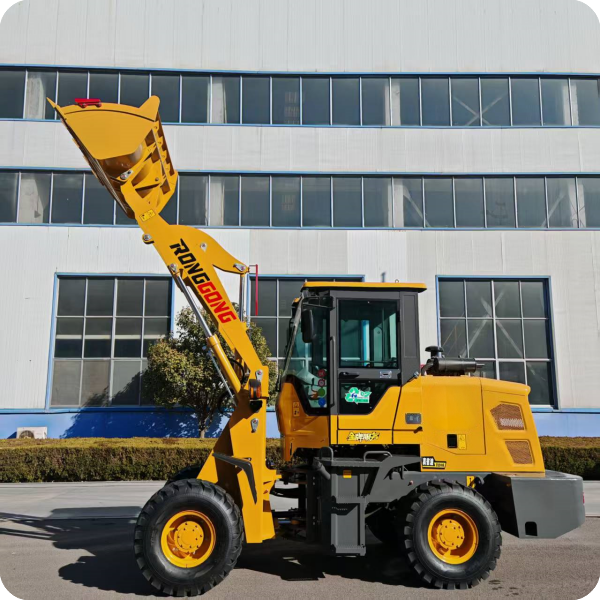

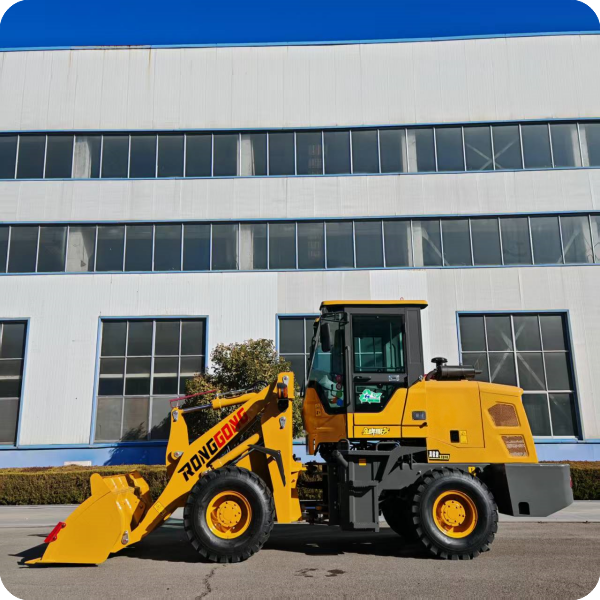

Product Details

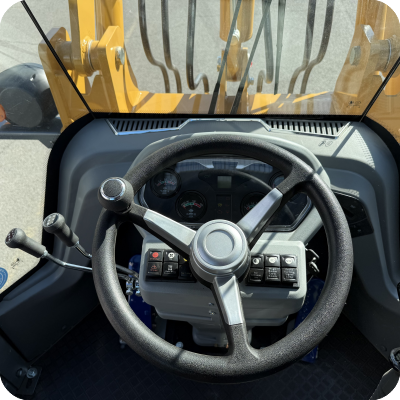

0e19284c0d10cb2a1a846769b54b0b1.png f4b501f6ccd777e201bc224a49faab3.png

6d5514f1ffcbc91fd8884493b5a8896.png 87c683277923221c32302496de13c3e.png

915f9cd6c31d90227f20a3d972c121f.png 96128e36bd0c7cb1cf33f25383dee2a.png
