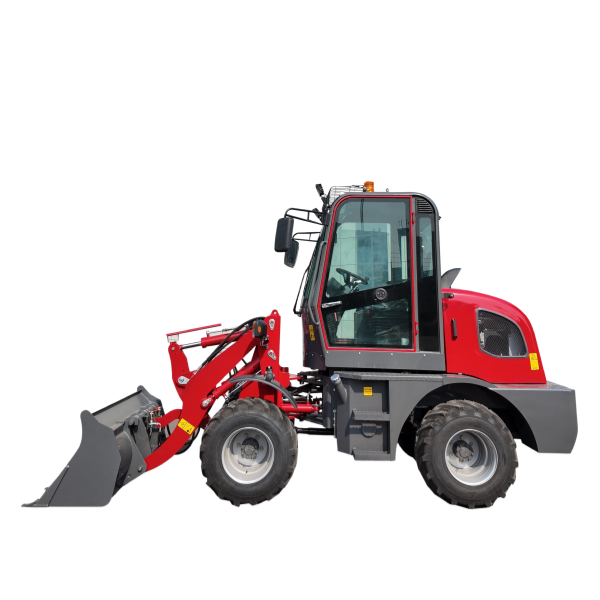

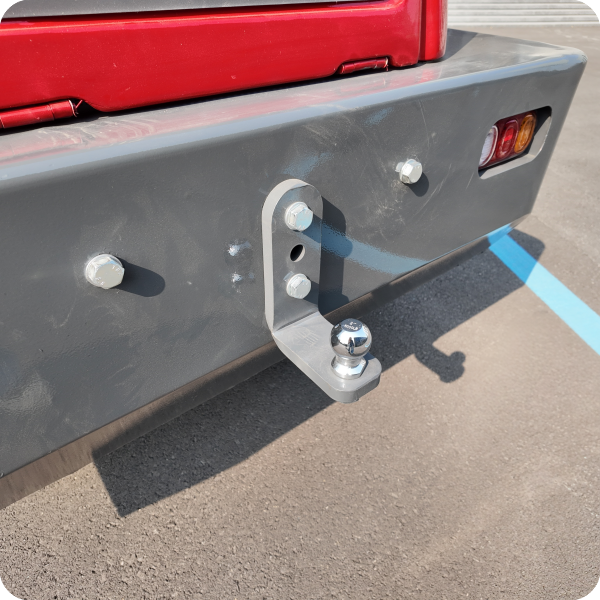

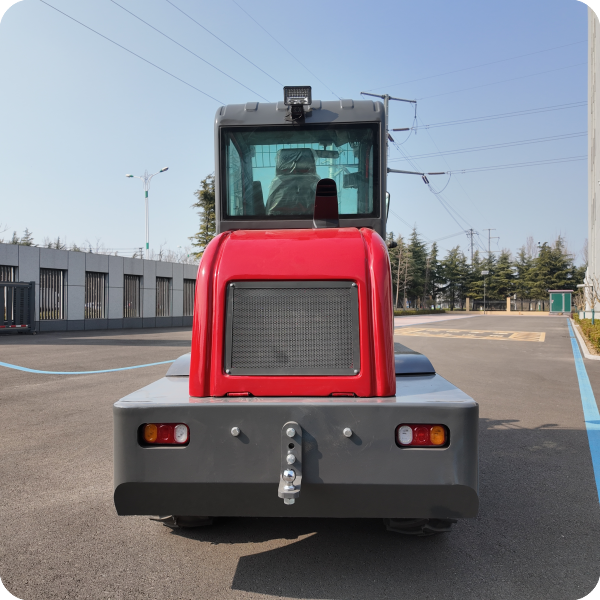

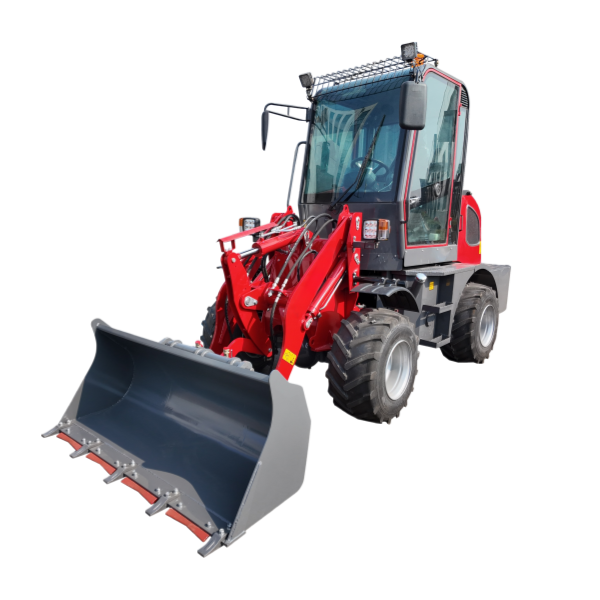

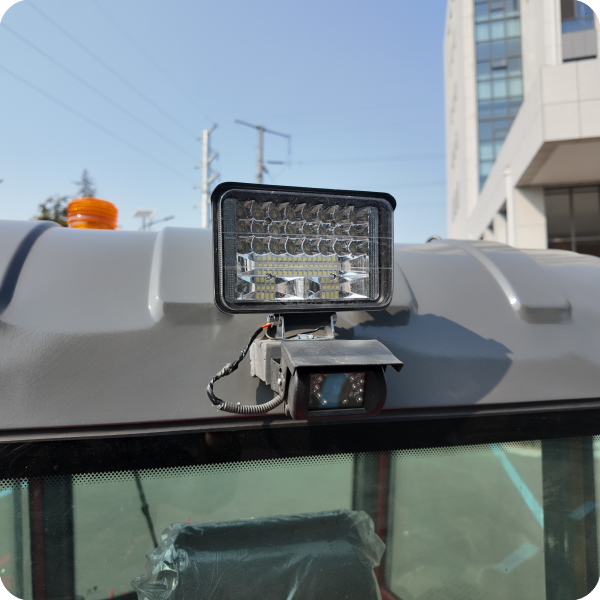

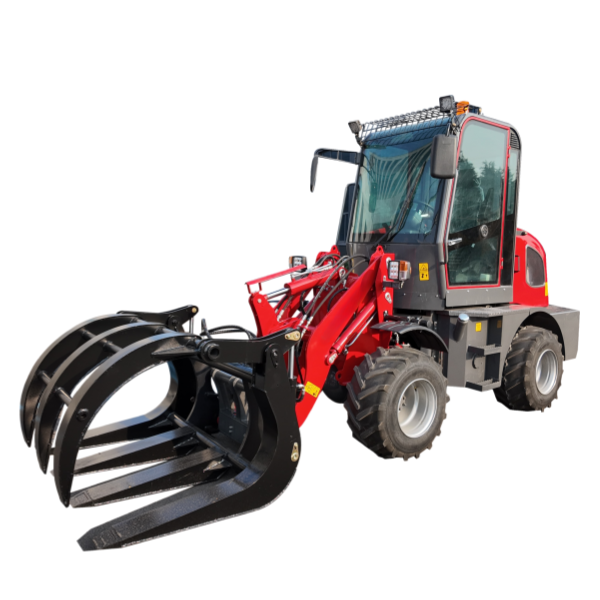

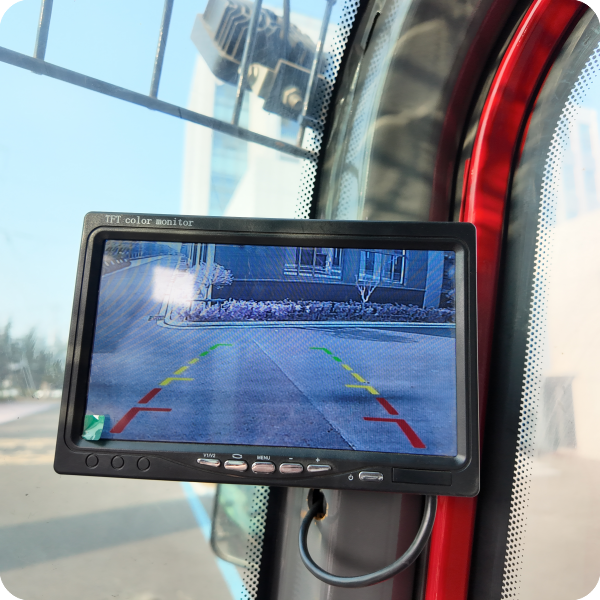

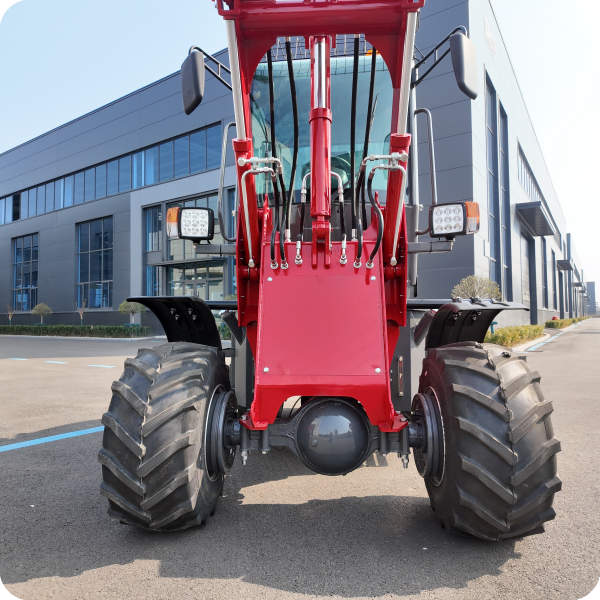

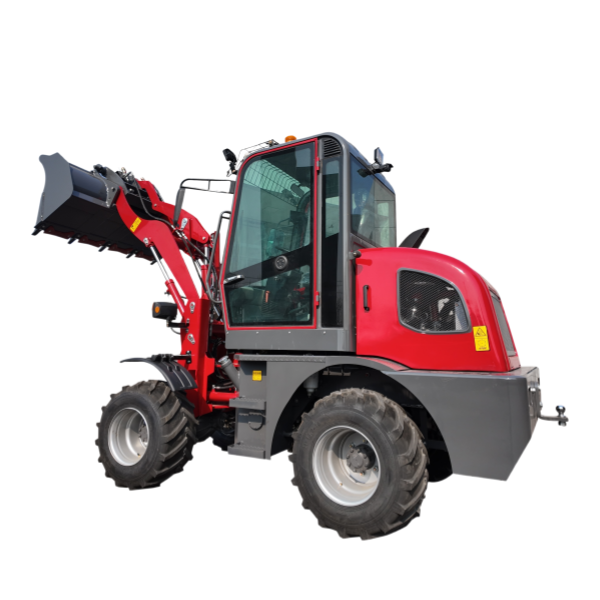

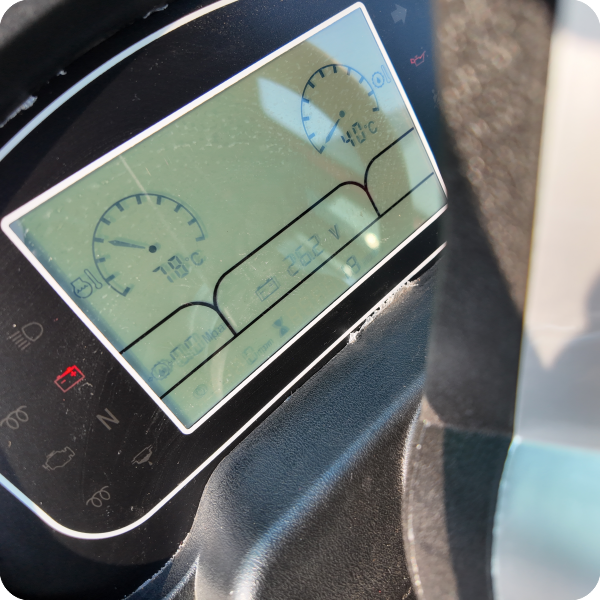

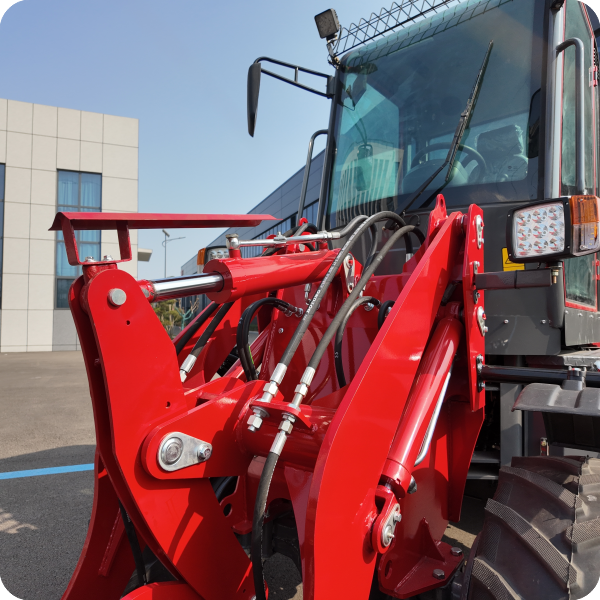

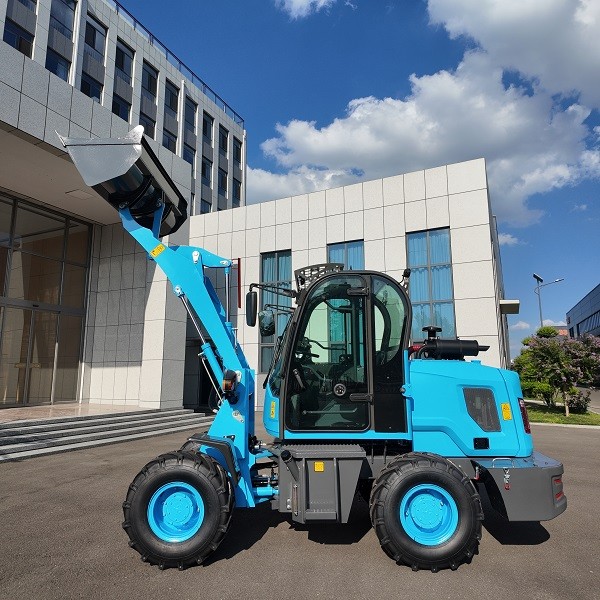

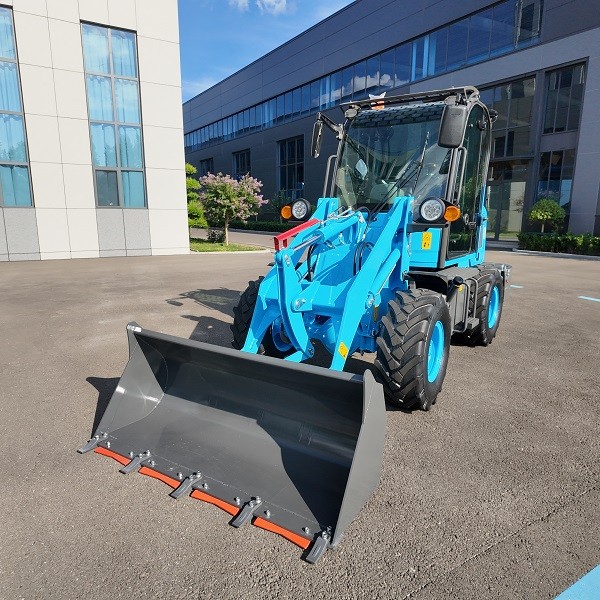

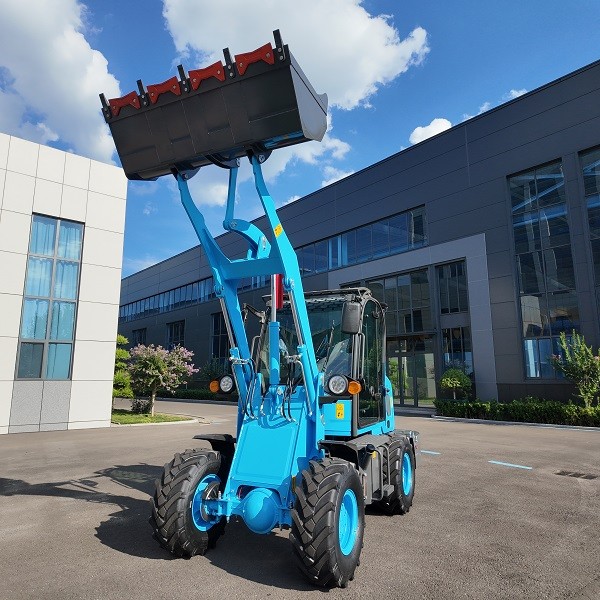

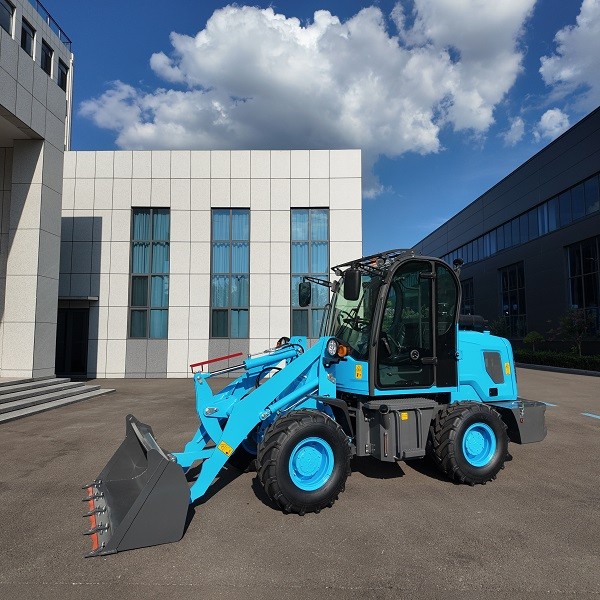

Overall System Specifications(Theoretical Value)

Overall System Specifications

Descriptions

Parameters

Descriptions

Parameters

Maximum Lifting Height, mm

3,900

Body Length, mm

4,150

Theoretical Climbing Angle, degree

15

Machine Width, mm

1,650

High Gear Speed, km/h

32

Machine Height, mm

2,580

Low Gear Speed, km/h

8

Minimum Ground Clearance, mm

280

Maximum Bucket Unloading Height, mm

2,150

Wheel Track, mm

1,230

No-load Lifting Time, second

≤3.2

Rated Load Capacity, kg

1,000

No-load Fall Time, second

≤2.1

Total Weight of the Machine, kg

2750

Unloading Time under No-load Condition, second

≤1.0

Bucket Length*Depth*Width, mm

1,600*380*680

Sum of the Three Terms

≤6.3

Bucket Capacity,m³

0.5

Axle Base, mm

1,765

Discharge Distance,mm

970

Discharge Angle,degree

35.1

Engine Parameters

Transmission System Parameters

Descriptions

Parameters

Descriptions

Parameters

Engine Vendor

Changchai

Transmission Type

Torque Converter, 265

Rated Power,kw

38

Gear Shift

Forward 2,Reverse 2

 Rated Speed,rpm

2,400

Braking System Type

Oil Braking

Number of Cylinders

4

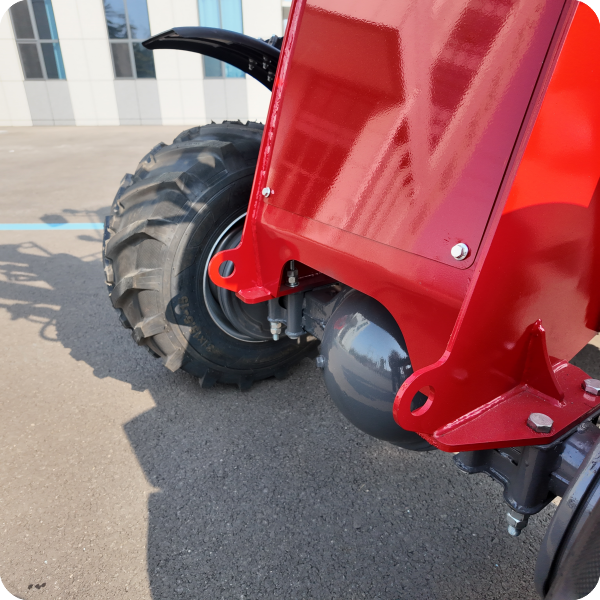

Axle

Isuzu Axles

Tire Model

20.5/70-16

Front Tire Pressure, MPa

0.33

Rear Tire Pressure, MPa

0.3

Steering System

Fuel Capacity

Descriptions

Parameters

Descriptions

Parameters

Steering Method

Fully Hydraulic Steering

Theoretical Fuel Volume, litre

48

Steering Angle, degree

32.5

Theoretical Hydraulic Oil Volume, litre

40

System Operating Pressure, MPa

16

Gear Oil Added to Single Wheel Axle, litre

14
